- Conductor Count : 1 Pair
- Conductor Size : 18 AWG (American Wire Gauge)
- Stranding : 7 x 28
- Insulation : Polyolefin
- Insulation colour : Orange & Blue
- Shielding : Foil Shield with Helical Binder
- Inner Jacket : Blue FRLS PVC jacket
- Outer Jacket Material : FRPVC Jacket
- Outer Jacket Colour : Orange with black stripes
- Impedance @31.25kHz : 100 +/- 20 OHMS
- Temperature Rating : -30 to +105 Deg. C
- Maximum Wire-to-Shield Capacitance Unbalance : 1.2 pF/FT
- Agency Approvals : NEC Type CM (UL 444), IEC 61158-2, ROHS Complaint EU CE LV Directive
- Flame Resistance : UL 1685 Vertical Tray
1 Roll In Stock
SKU
YC55456.R8Y1524M-1

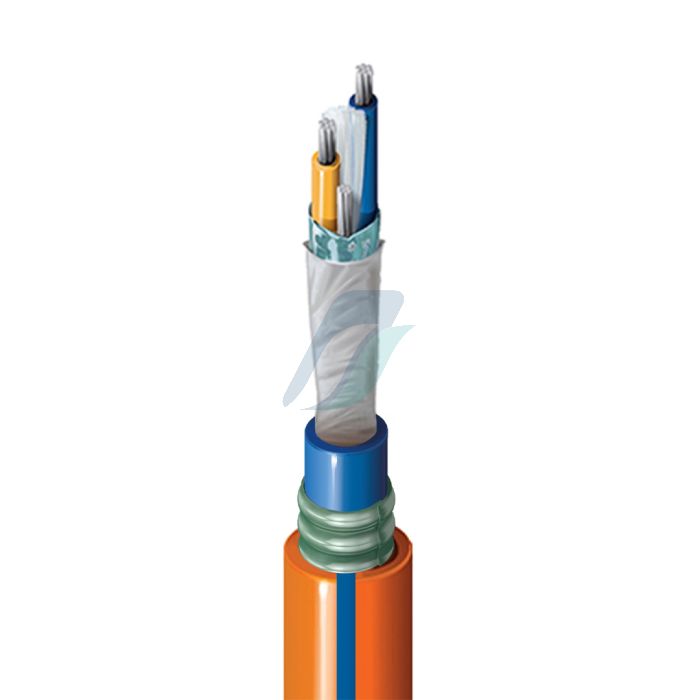

Belden Profibus PA / Foundation Fieldbus Armored Cable Type-A with FR Jacket
₹67,564.00
For 1 Roll
- YC55456.R8Y1524M-1
- 85444999
- 508 Mtrs
- Belden
- Roll
- No
- GST 18%
- Canada
Product Specification
