Belden 1P #18 PP SH PVC Profibus PA / Foundation Fieldbus cable

₹66,000.00 For 1 Roll

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU YJ57084.0031000M
HSN Code 85444999
Reel Length 1000 Mtr(s)
Manufacturer Belden
UOM Roll
ROHS Compliance Yes
Tax GST 18%
Country of Origin India

Product Details

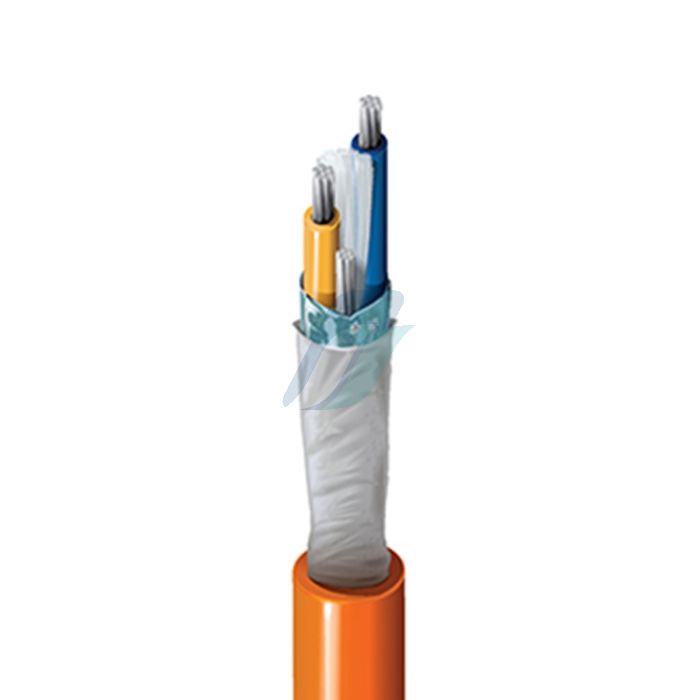

1 Pair, 18AWG stranded (7x26), tinned copper conductors, Polyolefin insulation, Overall Beldfoil® shield with tinned copper drain wire, PET Separator tape, overall PVC jacket.

Product Specification

Conductor Count : 1 Pair
Conductor Size : 18 AWG (American Wire Gauge)
Stranding : 7 x 26
Conductor Material : Tinned Copper
Insulation : Polyolefin
Shielding : Overall Beldfoil® Shield with Tinned Copper Drain wire
Jacket Material : PVC
Overall Nominal Diameter : 7.0 mm
Temperature Rating : -20° To + 70°C
Flame Test : IEC 60332-1
Max. Conductor DC Resistance : 23.2 /km
Impedance@ 31.25KHz : 100° 20°C
Max. Capacitance Unbalance : 3.94 pF/m
Voltage Rating : 300V

Datasheet

Belden_YJ57084.pdf
