- Conductor Count : 1 Pair
- Conductor Size : 18 AWG (American Wire Gauge)
- Stranding : 7 x 26
- Insulation : Polyolefin
- Insulation colour : Brown & Blue
- Shielding : Beldfoil®+Aluminum Foil-Polyester Tape
- Inner Jacket : PVC ?Polyvinyl Chloride
- Dia of Armour : 0.90 mm
- Outer Jacket Material : FRPVC-Flame Retardant Polyvinyl Chloride
- Temperature Range: -20°C To + 90°C
- Applicable Standards: IS 8130, IS5831, IS3975
- Max. Capacitance Unbalance: 3.94 pF/m
- Voltage Rating: 300V @ maximum temperature
- Impedance @ 31.25KHz: 100 +/- 20°C
Out of stock
SKU
YJ53440.0031000

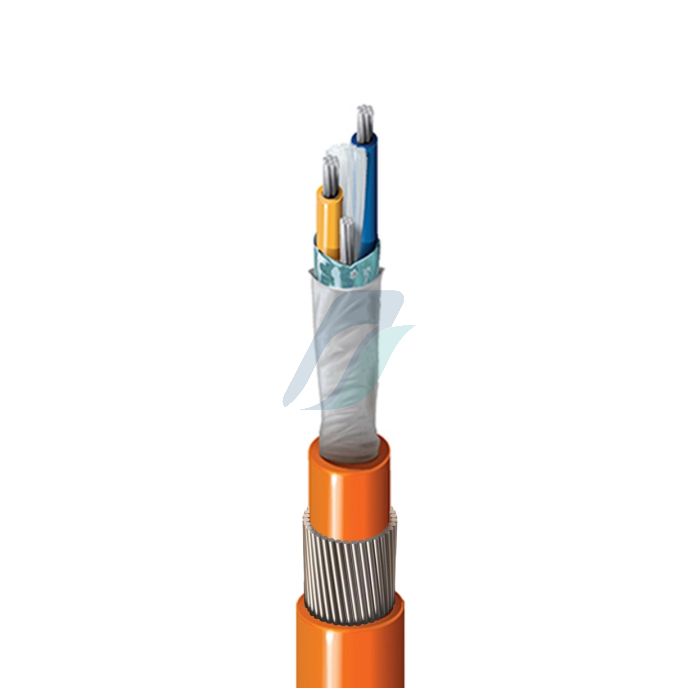

Belden Profibus PA / Foundation Fieldbus Armored cable
₹60,500.00
For 1 Roll
- YJ53440.0031000
- 85444999
- 500 Mtr(s)
- Belden
- Roll
- No
- GST 18%
- India
Product Specification
Datasheet
