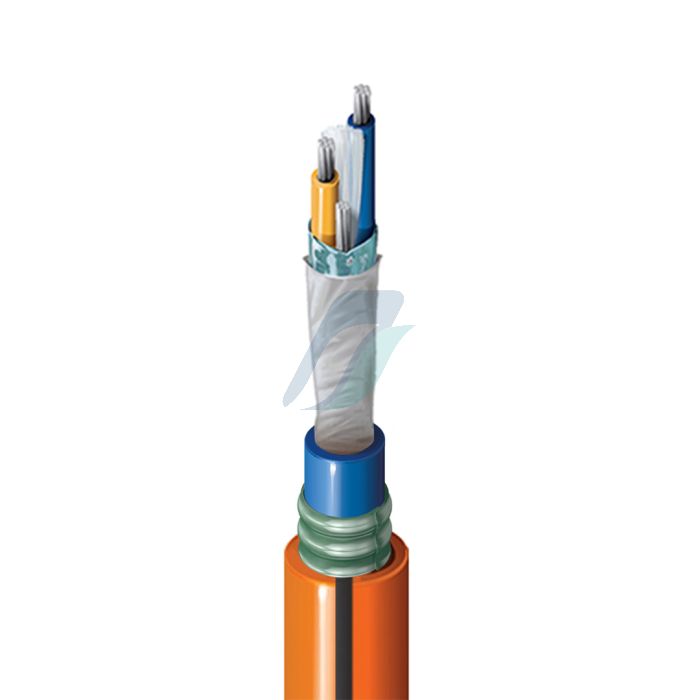

Belden Profibus PA / Foundation Fieldbus Armored Cable Type-A with FR Jacket

₹134.00 For 1 Mtr(s)

Product Details

Profibus PA / Foundation Fieldbus Armored cable

Product Specification

Conductor Count : 1 Pair
Conductor Size : 18 AWG (American Wire Gauge)
Stranding : 7 x 28
Insulation : XLPE
Insulation colour : Brown & Blue
Shielding : Foil Shield with 20AWG (7x28) Tinned Copper Drain Wire & Helical Binder
Inner Jacket : Blue FRLS PVC jacket
Outer Jacket Material : FRPVC Jacket
Outer Jacket Colour : Orange with black stripes
Max. Operating Voltage : 300V
Impedance @31.25kHz : 100 +/- 20 OHMS
Temperature Rating : -30 to +90 Deg. C
Maximum Wire-to-Shield Capacitance Unbalance : 1.2 pF/FT
Agency Approvals : NEC Type CM (UL 444), IEC 61158-2, ROHS Complaint EU CE LV Directive
