- Rated current : 1A
- Rated voltage : 100VAC rms
- Insulation withstand voltage : 500VAC (r.m.s)/1-minute
- Insulation impedance : 500MΩ Min. at 500VDC
- Working temperature : -20 ° C to 105 ° C
- Protection level : IP67
Out of stock
SKU
S6-7P

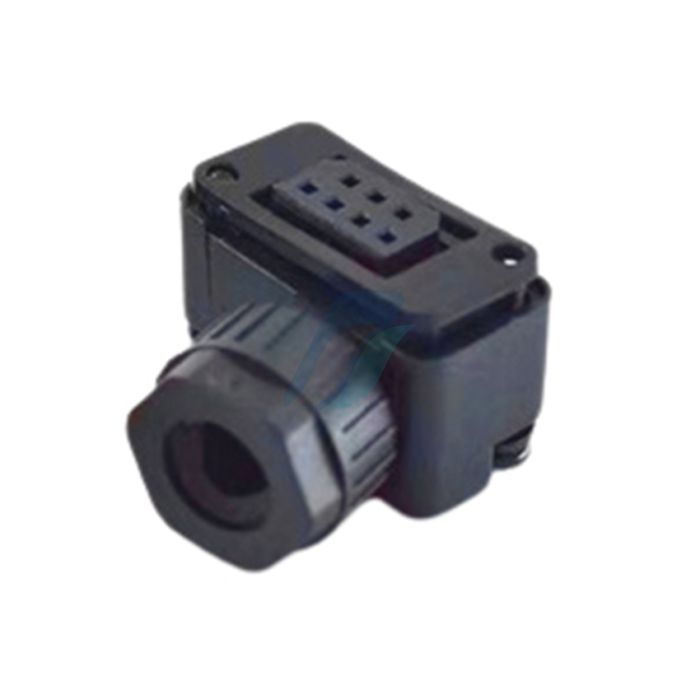

Spectra 7 Pin Encoder & Power Crimp Connector
₹130.00
- S6-7P
- 85366990
- Pc(s)
- Spectra
- Individual Crimp
- Female
- Yes
- GST 18%
- China
Product Specification
Product Details
| Body | : | PA66+30GF UL94V-0 Black |
| Nut | : | PA66+30GF UL94V-0 Black |
| Insert | : | PA66+30GF UL94V-0 Black |
| Seal | : | Rubber,TPPA Black |
| Contact | : | C5191-H,gold-plated |
| Screw | : | SPCCM2*12 Black |
| Clamp | : | PA66+30GF UL94V-0 Black |
Datasheet
