- Rated current : Power 7AMax/ Brake 5AMax
- Rated voltage : 200VAC
- Insulation withstand voltage : 1500VAC
- Insulation impedance : 1000MQMin.at500VDC
- Working temperature : -20 ° C to 105 ° C
- Protection level : IP67
Out of stock
SKU
S6-4+2P

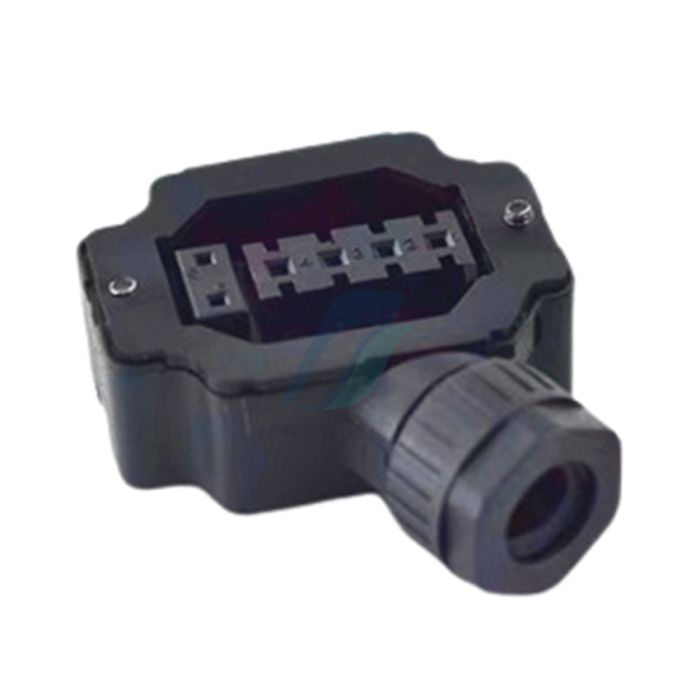

Spectra 6 Pin 4+2 Encoder & Power Crimp Connector
₹120.00
For 1 Pc(s)
- S6-4+2P
- 85366990
- Pc(s)
- Spectra
- Individual Crimp
- Female
- Yes
- GST 18%
- China
Product Specification
Product Details
| Body | : | PA66+30GF UL94V-0 Black |
| Nut | : | PA66+30GF UL94V-0 Black |
| Insert | : | PA66+30GF UL94V-0 Black |
| Seal | : | Rubber,TPPA Black |
| Contact | : | C5191-H,gold-plated |
| Screw | : | SPCCM2*12 Black |
| Clamp | : | PA66+30GF UL94V-0 Black |
| Gasket | : | Stainless Steel |
Datasheet
