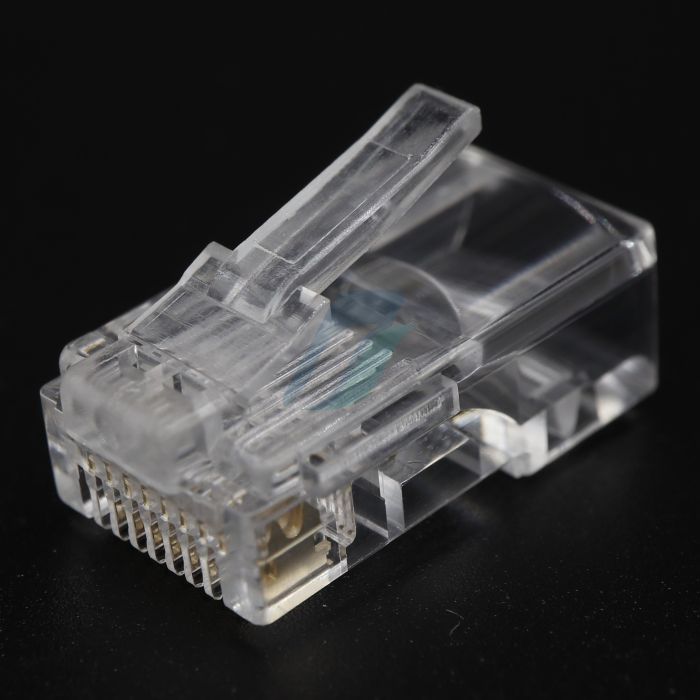

Spectra 8P8C Modular Plug

₹3.50 For 1 Pc(s)

Other Available Option

Contacts

Product Specification

Wire Insert Diameter - 1.0mm
Maximum Cable O.D. Size Supported : 5.5mm
Maximum conductor W/insulation O.D. Size : 1.0mm
Conductor type : Solid | Stranded
Plug Housing Material : UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material : Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature : - 10°C ~ 60°C
Storage temperature : - 40°C ~ 70°C
Compliance : Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

Datasheet
