1000 Pc(s) In Stock
SKU
9105-44

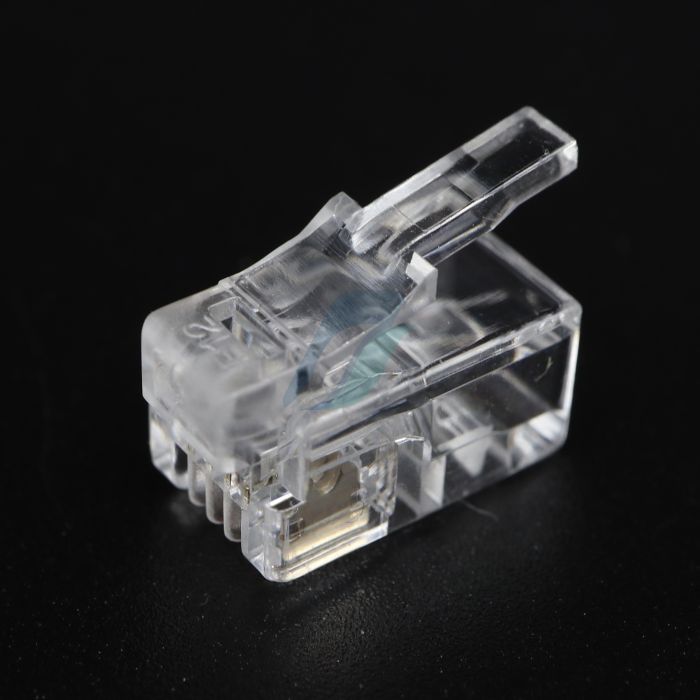

Spectra 4P4C Modular Plug

₹2.25 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
Other Available Option
  • 9105-44
  • 85366990
  • 4P4C
  • Pc(s)
  • Yes
  • GST 18%
  • Taiwan, Province of China
Product Specification
  • Wire Insert Diameter - 1.0mm
  • Maximum Cable O.D. Size Supported : For Flat Cable
  • Maximum conductor W/insulation O.D. Size : 1.0mm
  • Conductor type : Solid | Stranded
  • Plug Housing Material : UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
  • Contact Blades Material : Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
  • Operation Temperature : - 10°C ~ 60°C
  • Storage temperature : - 40°C ~ 70°C
  • Compliance : Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
