- Orientation : Vertical
- Termination Style : PCB Solder
- Pin Pattern : Signal
- Current Rating : 5A per contact
- Voltage Rating : 300V rms at 50 Hz
- Resistance (Contact) < 10mvΩ
- Operating Temperature Range : -55°C to +125°C
- Durability (Mating cycles) Std Class (>200 Mating Cycles)
- Plating Shel l: Matte Tin
- Plating Contact area : Gold over Nickel
- EU RoHS : Compliant
445 Pc(s) In Stock
SKU
7003-09

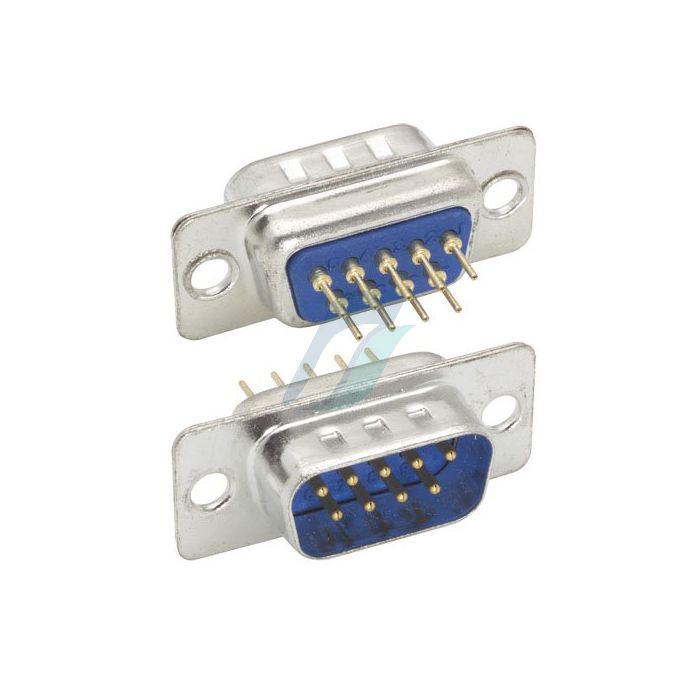

Spectra 9 Pin D-Sub Male PCB Straight
₹14.00
For 1 Pc(s)
Other Available Option
- 7003-09
- 85366990
- Pc(s)
- Spectra
- 9
- PCB Straight
- Male
- Yes
- GST 18%
- China
Product Specification
Datasheet
