- Rated Voltage / Current : 1000V/50A
- Insulation Resisance : >100ΜΩ
- Mechanical working life ( Mating Cycle) : 100
- With Standing Voltage : 4250V DC
- Operating Temperature : -40~+80°C
- Levels of protection : IP67
- Terminal : Crimp Termination
- Wire Range : 10AWG/6mm²
- Stripping Length : 8~9
- Conform to ROHS : Yes
6 Pc(s) In Stock
SKU
ESP-50A-06-BK-00

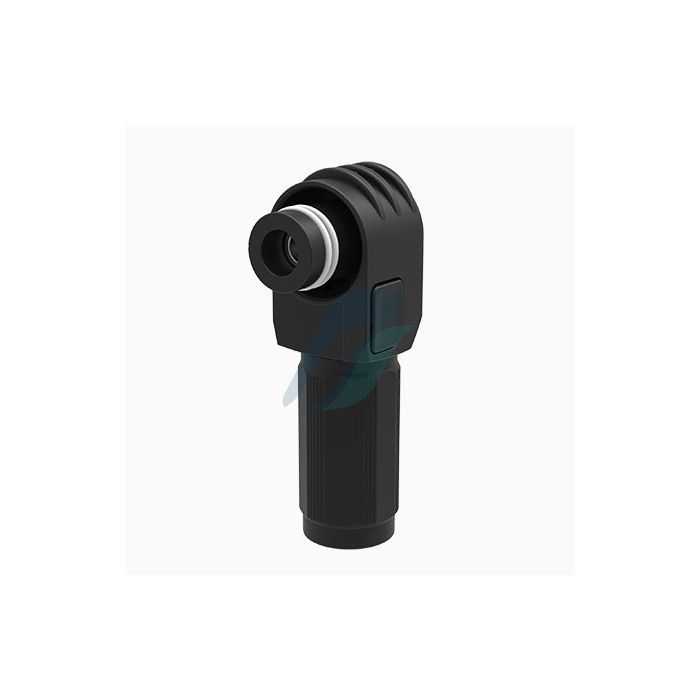

1 Pin Energy Storage Female Cable Type (Black) 50 AMP
₹285.00
For 1 Pc(s)
- ESP-50A-06-BK-00
- 85366990
- Degson
- Pc(s)
- Yes
- Female
- GST 18%
- China
Product Specification
Datasheet
