- Withstand Voltage: 100V AC
- Insulation Resistance: >10MΩ
- Life Cycle: ≥500 times
- Wire Size: (24~28) AWG
- Cable O.D Range: Φ5.5 mm
- Assembly Style: Swan / Clip Lock
- Protection Level: Standard IP65 / Optional IP67 & IP68
- Temperature Rating: -40°C ~ +85°C
- Shell & Insulated Parts: PBT
20 Pc(s) In Stock
SKU
YU-USB3-FS-MP-1M-003

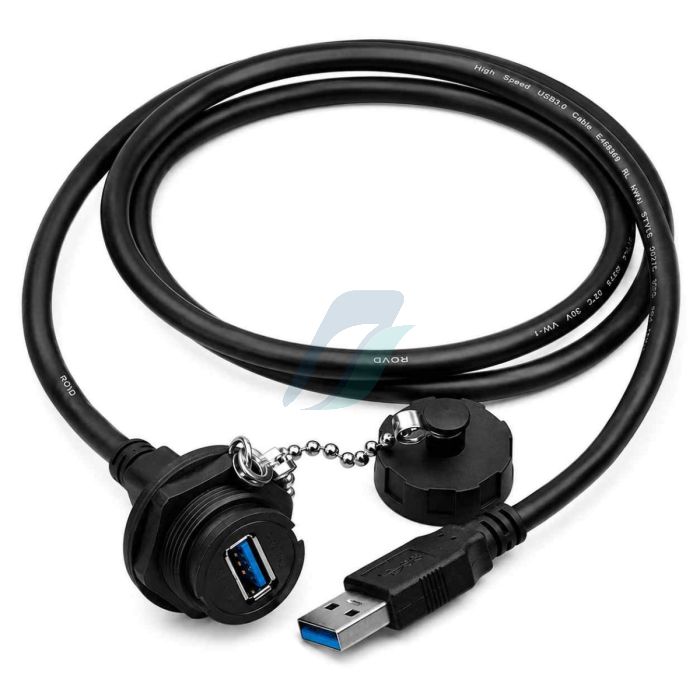

Cnlinko YU Series USB 3.0 Female-Male IP67 Waterproof Data Connector 1 Meter Cable
₹582.00
- YU-USB3-FS-MP-1M-003
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- Female
- Panel Type
- GST 18%
- China
Product Specification
Product Details
- Industrial Waterproof USB 3.0 Connector:
Specially designed for USB 3.0 interfaces used in industrial, outdoor, and demanding application environments requiring reliable high-speed connectivity. - Secure Locking Mechanism:
Features a jacket buckle locking system that provides a safer, more reliable, and vibration-resistant connection for stable operation. - IP67 Waterproof Protection:
Offers high-level waterproof and dustproof performance in connected condition, making it suitable for humid, wet, and harsh environments. - Reinforced Cable Protection:
The plug and receptacle include integrated cable sheath support to improve bending resistance, reduce cable stress, and extend service life. - Flexible Installation Options:
Supports panel-mount and wire-to-wire installation methods, allowing easy integration into both fixed and mobile industrial applications.
