- Withstand Voltage: 100V AC
- Insulation Resistance: >10MΩ
- Life Cycle: ≥500 times
- Wire Size: (24~28) AWG
- Cable O.D Range: Φ5.5 mm
- Assembly Style: Swan / Clip Lock
- Protection Level: Standard IP65 / Optional IP67 & IP68
- Temperature Rating: -40°C ~ +85°C
- Shell & Insulated Parts: PBT
15 Pc(s) In Stock
SKU
YU-USB3-JSX-01-004

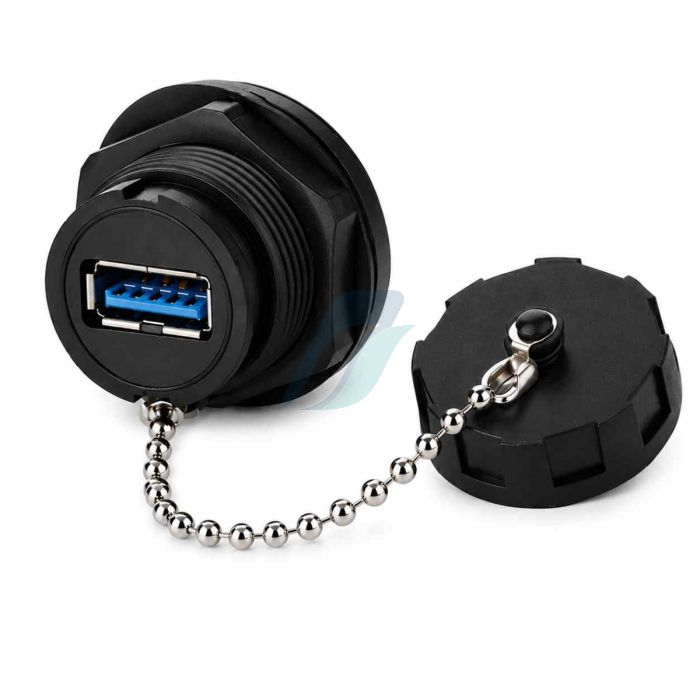

Cnlinko YU-USB USB 3.0 Female-Female Coupler IP67 With Cap
₹274.00
For 1 Pc(s)
- YU-USB3-JSX-01-004
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- Female
- Panel Type
- GST 18%
- China
Product Specification
Product Details
- USB 3.0 Waterproof Connector:
Special waterproof data connector designed for USB 3.0 interfaces, ideal for demanding industrial and outdoor environments. - Secure Locking Mechanism:
Jacket buckle locking design ensures reliable, secure, and stable connections during operation. - IP67 Protection Rating:
Provides excellent resistance against moisture, water, and harsh environmental conditions when connected. - Reinforced Cable Protection:
Integrated cable sheath design improves bending strength, reduces cable stress, and extends service life. - Flexible Installation Options:
Supports both panel mounting and wire-to-wire installation for fixed and mobile application requirements.
