50 Pc(s) In Stock
SKU
DM-03S-1P-Z

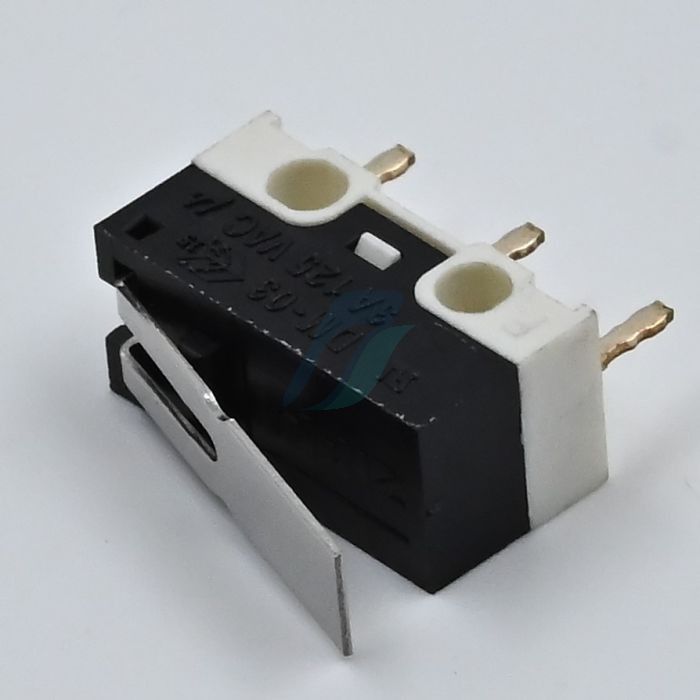

Zippy Micro Mouse Lever Switch

₹35.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • DM-03S-1P-Z
  • 85365090
  • Zippy
  • Pc(s)
  • No
  • GST 18%
  • Taiwan, Province of China
Product Specification
  • Operating frequency(mechanical) : 120 Operation / mim
  • Operating frequency(electrical) : 10~30 Operation/mim
  • Contact resistance : 100m Ω(max)
  • Insulation resistance(at 500 VDC) : 100M Ω(Min)
  • Service life(mechanical) : Min.1,000,000 Operations
  • Service life(electrical) : 3A-Min.10,000 Operations
  • Rating : 0.1A//3A 125VAC ; 0.1A 48 VDC ; 0.2A 60VDC
