- Series: D4 Miniature Switch
- Circuitry: S.P.D.T.
- Electrical Rating: 6 A, 250 V AC
- Operating Force: 200 cN (Max.)
- Switching Voltage: 250 V AC
- Terminal Type: Solder Terminal Short (A1)
- Auxiliary Actuator: Without Lever (AA)
- Terminal Material: CuZn Silver-Plated
- Operating Temperature: -40°C to +85°C
- Mechanical Life: 1 × 10⁶ Operations
- Switching Current: 0.1 to 10 A AC (Depending on Model)
- Contact Gap: < 3 mm
500 Pc(s) In Stock
SKU
ASDC1C-A1AA

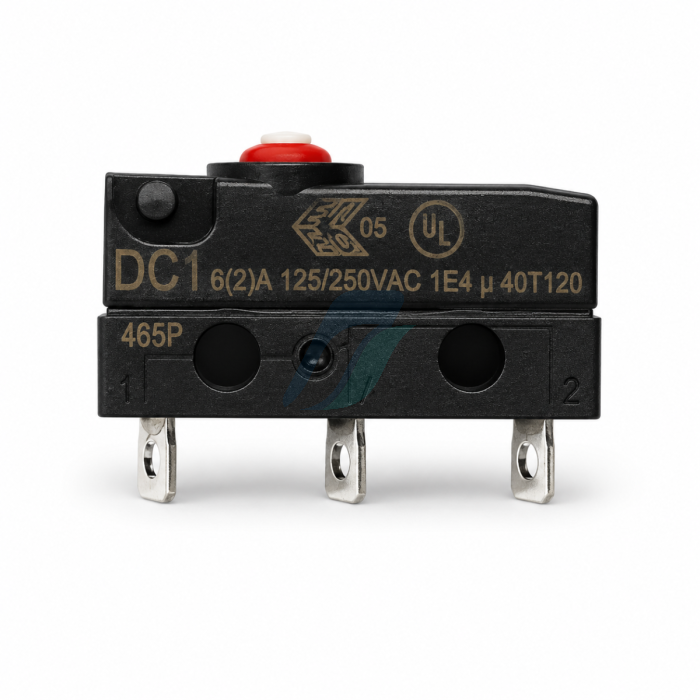

ZF DC Subminiature SPDT Micro Switch
₹121.00
- ASDC1C-A1AA
- 85365090
- ZF
- Panel Type
- Pc(s)
- Yes
- GST 18%
- China
Product Specification
Product Details
The ZF ASDC1C-A1AA DC Subminiature SPDT Micro Switch is a compact sealed snap-action switch designed for reliable operation in industrial equipment, control systems, appliances, and automation applications. Featuring IP67 protection and durable construction, it provides dependable switching performance, high repeat accuracy, and long service life in environments where protection against dust and moisture is required.
