- Series: D4 Miniature Switch
- Circuitry: S.P.D.T.
- Electrical Rating: 16 (4) A, 250 V AC
- Operating Force: 400 cN (Max.)
- Switching Voltage: 250 V AC
- Terminal Type: 4.8 × 0.8 mm Straight Quick Connect (Q1)
- Auxiliary Actuator: Without Auxiliary Actuator (AA)
- Housing Material: PET / PA6 (UL 94V-0)
- Operating Temperature: -40°C to +85°C
- Mechanical Life: (POM Actuator Material) 2 × 10⁵ Operations
- Electrical Life: 50,000 Operations
- Contact gap: < 3 mm
500 Pc(s) In Stock
SKU
ASD459Q1AA
ZF D4 Miniature SPDT Micro Switch 16A Q1 Terminal
₹89.00
- ASD459Q1AA
- 85365090
- ZF
- Panel Type
- Pc(s)
- Yes
- GST 18%
- China
Product Specification
Product Details

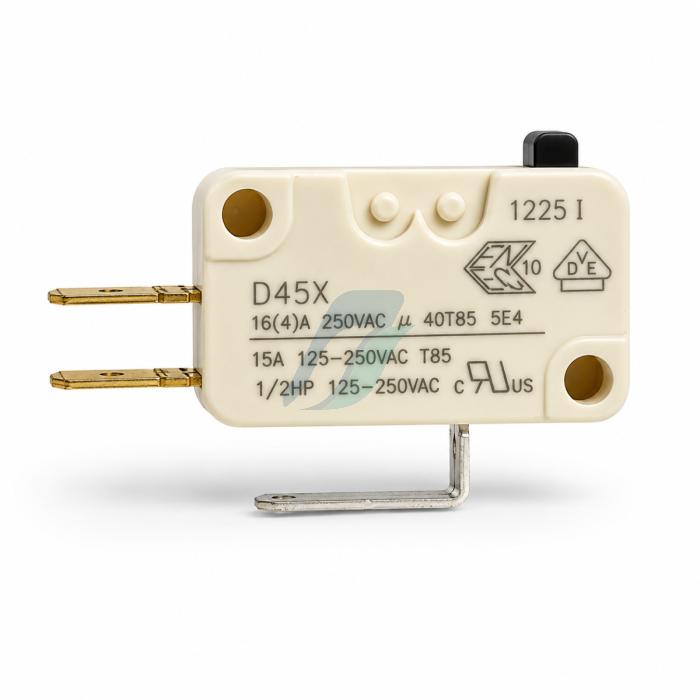

The ZF ASD459Q1AA D4 Miniature SPDT Micro Switch is a compact snap-action switch designed for industrial, automation, and appliance applications. Rated at 16 (4) A, 250 V AC, it features SPDT contacts, 4.8 x 0.8 mm straight quick-connect terminals, and AgNi contact material to provide reliable switching performance, high contact stability, and long service life in demanding operating environments.
