- Series: D4 Miniature Switch
- Circuitry: S.P.D.T.
- Electrical Rating: 10 (3) A, 250 V AC
- Operating Force: 285 cN (Max.)
- Switching Voltage: 250 V AC
- Terminal Type: 4.8 × 0.8 mm Straight Quick Connect (Q1)
- Auxiliary Actuator: Without Auxiliary Actuator (AA)
- Housing Material: PET / PA6 (UL 94V-0)
- Operating Temperature: -40°C to +85°C
- Mechanical Life: (POM Actuator Material) 1 × 10⁶ Operations
- Electrical Life: 50,000 Operations
- Contact gap: < 3 mm (μ)
500 Pc(s) In Stock
SKU
ASD449Q1AA

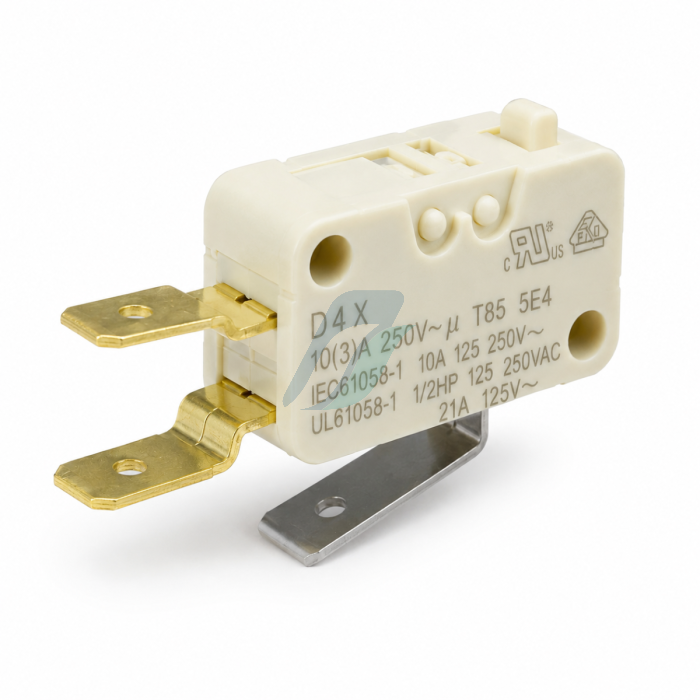

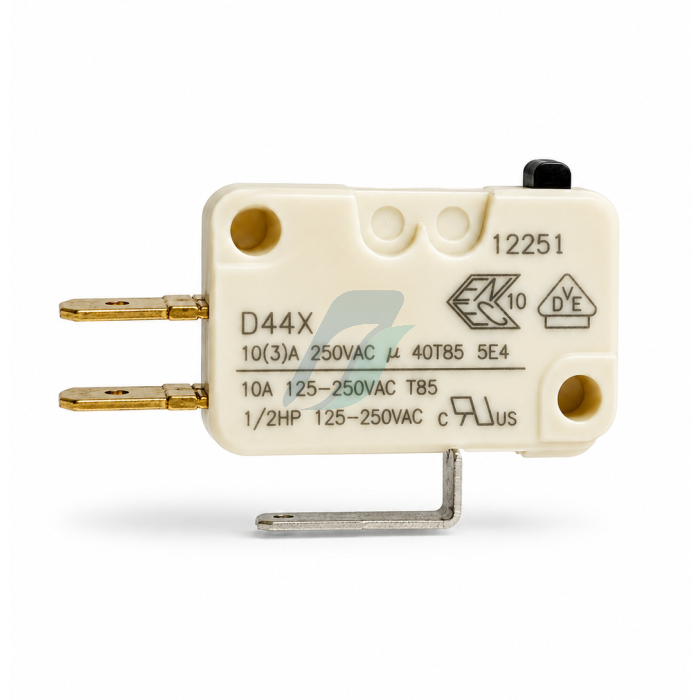

ZF D4 Miniature SPDT Basic Micro Switch
₹83.00
- ASD449Q1AA
- 85365090
- ZF
- Panel Type
- Pc(s)
- 3
- Yes
- GST 18%
- China
Product Specification
Product Details
The ASD449Q1AA is a compact and reliable D4 Series miniature snap-action microswitch designed for industrial and appliance applications. Featuring SPDT contacts, 10A switching capability, and 4.8mm straight quick-connect terminals, this switch offers excellent contact stability, high repeat accuracy, and long mechanical life for demanding switching applications.
Datasheet
