- Series: D4 Miniature Switch
- Circuitry: S.P.D.T.
- Electrical Rating: 6 (2) A, 250 V AC
- Operating Force: 170 cN (Max.)
- Switching Voltage: 250 V AC
- Terminal Type: 4.8 × 0.8 mm Straight Quick Connect (Q1)
- Auxiliary Actuator: Straight Actuator
- Housing Material: PET / PA6 (UL 94V-0)
- Operating Temperature: -40°C to +85°C
- Mechanical Life: (POM Actuator Material) 5 × 10⁶ Operations
- Electrical Life: 50,000 Operations
- Contact gap: < 3 mm
100 Pc(s) In Stock
SKU
ASD439Q1JL

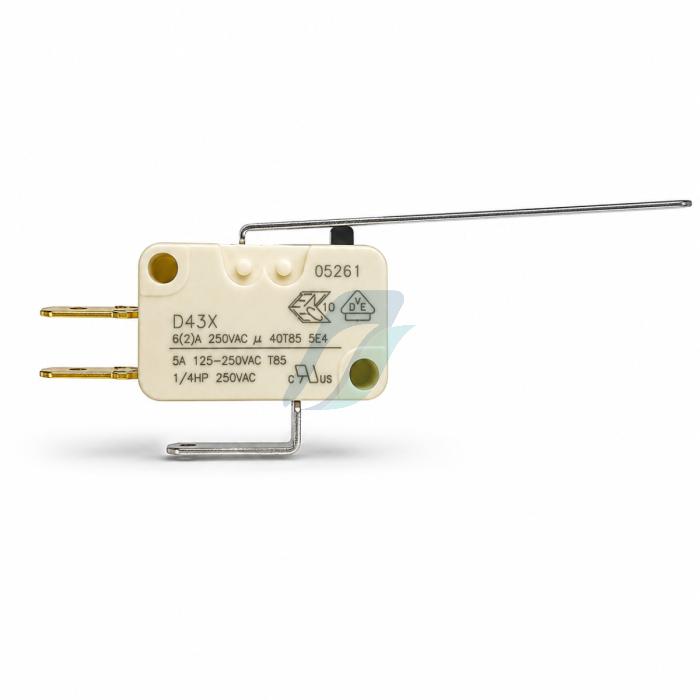

ZF D4 Miniature SPDT Micro Switch with Straight Actuator
₹91.00
- ASD439Q1JL
- 85365090
- ZF
- Panel Type
- Pc(s)
- Yes
- GST 18%
- China
Product Specification
Product Details
The ZF ASD439Q1JL D4 Miniature SPDT Micro Switch is a reliable snap-action switch designed for precise switching and control applications. Its compact design and durable construction make it suitable for use in industrial equipment, automation systems, home appliances, control panels, safety interlocks, and position sensing applications. As part of the trusted ZF D4 Series, this micro switch delivers consistent performance, high switching reliability, and long operational life in demanding environments.
