- Shell Diameter (The Panel Hole Cutout Diameter) : 13mm
- Number of Contact : 4Pin
- Rated Current (A) and Voltage : 5A and 200V
- Contact Diameter(mm) : 1
- Coupling : Threaded
- Shell Material : PC, Nylon66, Fire Resistance : V-0
- Insert material : PPS, max temperature 260 ℃
- Contact Material : Brass With Gold Plating
- Termination : Solder
- IP Rating : IP68
- Mating Cycle : 500
- Temperature Range : -40 ~ + 85℃
- Insulation Resistance : 2000 MΩ
- Approvals : CE, ROHS approval
387 Pc(s) In Stock
SKU
SP1310-P4II-N

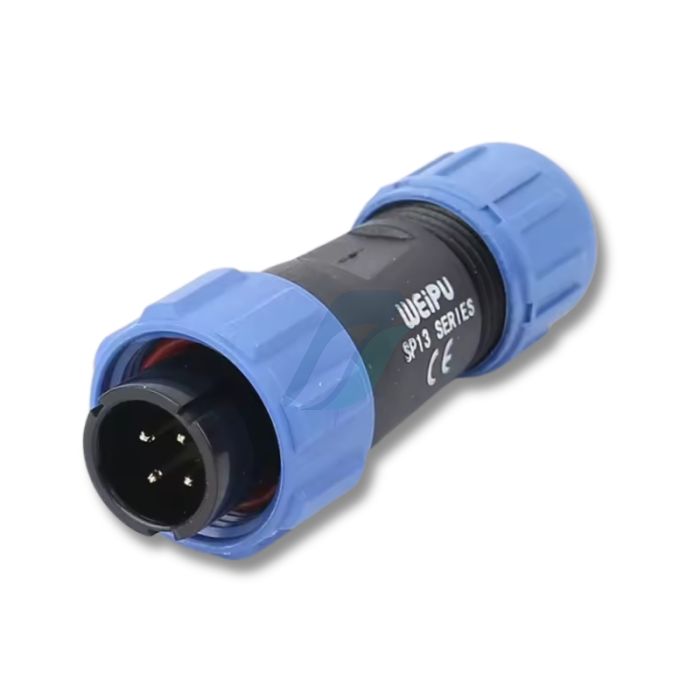

Weipu 4 Pin Waterproof Male Cable Type 5-8MM
₹169.00
Other Available Option
- SP1310-P4II-N
- 85366990
- Weipu
- Pc(s)
- 1
- Yes
- 4
- Male
- Cable Type
- GST 18%
- China
Product Specification
Product Details
- Smallest plastic shell IP68 waterproof connector
- Threaded coupling
- This miniature connector is one of our most popular outdoor watertight connector
- The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections
- Each side can be male or female contact, (Plug or socket versions)
- The IP68 sealing caps are available on both cable connector and panel connector
