- Shell Diameter (The Panel Hole Cutout Diameter) : 13mm
- Number of Contact : 5Pin
- Rated Current (A) and Voltage: 5A and 180V
- Contact Diameter(mm) : 1
- Coupling : Threaded
- 7124WP5PF
- Shell Material : PC, Nylon66, Fire Resistance : V-0
- Insert material : PPS, max temperature 260 ℃
- Contact Material : Brass With Gold Plating
- Termination : Solder
- IP Rating : IP68
- Mating Cycle : 500
- Temperature Range : -40 ~ + 85℃
- Insulation Resistance : 2000 MΩ
- Approvals : CE, ROHS approval
19 Pc(s) In Stock
SKU
7124-WP5PF

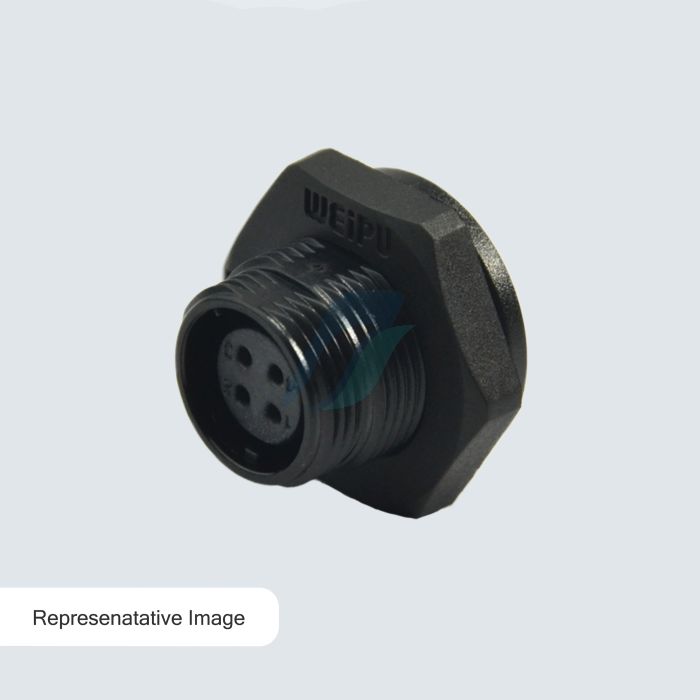

Weipu 5 Pin Water Proof Female Panel Type 5-8MM
₹194.00
For 1 Pc(s)
Other Available Option
- 7124-WP5PF
- 85366990
- Weipu
- Pc(s)
- No
- 5
- Female
- Panel Type
- GST 18%
- China
Product Details
- Smallest plastic shell IP68 waterproof connector
- Threaded coupling
- This miniature connector is one of our most popular outdoor watertight connector
- The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections
- Each side can be male or female contact, (Plug or socket versions)
- The IP68 sealing caps are available on both cable connector and panel connector
