- Number of Contact : 8 Pin
- Gender : Female
- Mounting Method : Panel Mount
- Coupling : Threaded
- Termination : Solder
- Shell Material : Zinc Alloys With Nikelplate, PA66+GF20%
- Insert Material : PA66+GF20%
- Contact Material : Copper (Silverplated)
- Temperature Range : -25 ~ + 85℃
- Cable Diameter : ≤ Ø6.0mm ~ ≤ Ø8.0mm
- Mating Cycle: 500
- Rated Current/Voltage : 5A - 60V
- Operation Limit Voltage(AC.V.rms) : 125
- Withstanding Voltage(AC.V.rms)/Minute : 500
- Insulation Resistance(MΩ Min.)At DC 500V : 1000
- Contact Resistance (MΩ Max.)At DC 1A : 7
Out of stock
SKU
M16-8FP

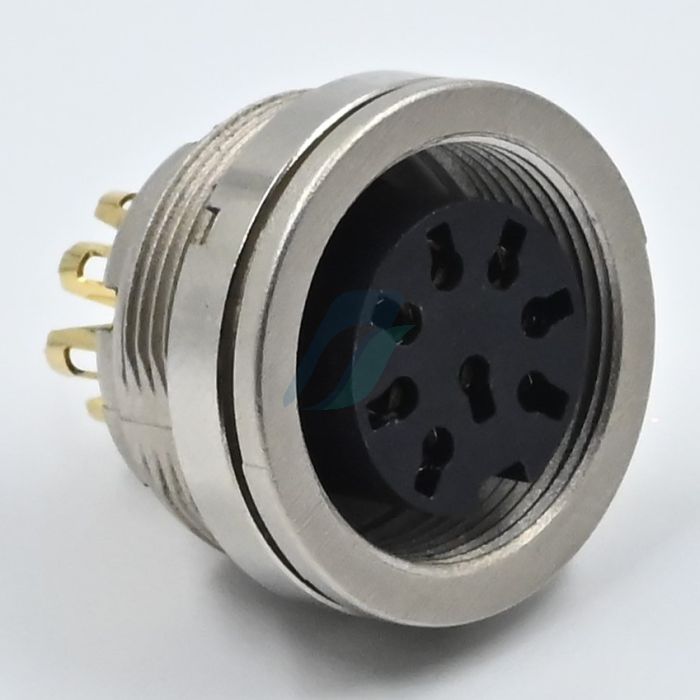

Spectra M16-8FP 8 Pin M16 Female Panel Mount Connector
₹525.00
For 1 Pc(s)
- QTY. Price
- 50+ ₹513.00
Other Available Option
- M16-8FP
- 85366990
- Spectra
- Pc(s)
- No
- 8
- Female
- Panel Type
- GST 18%
- China
Product Details
- M16 connectors are ideal for serving industrial and commercial applications. According to standard DIN EN 61076-2-106. IP-rated to IP67/IP40
- With a screw coupling mechanism and IP40/IP67 rating
- Over-molded cable and panel-mount receptacles are available in various styles and mounting methods
- Ideal for many applications where a small yet rugged and compact connector solution is required
