10 Pc(s) In Stock
SKU
M16-7MC

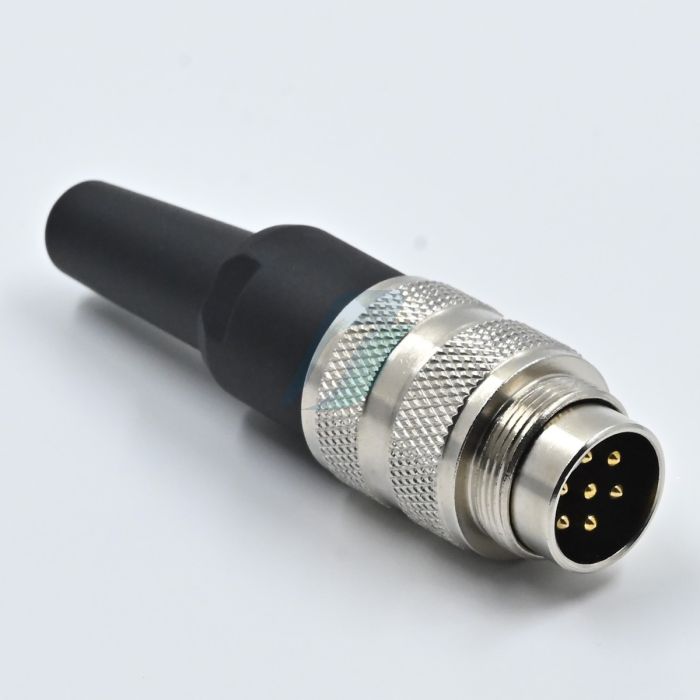

Spectra M16-7MC 7 Pin M16 Male Cable Type

₹575.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
Other Available Option
  • M16-7MC
  • 85366990
  • Spectra
  • Pc(s)
  • No
  • 7
  • Male
  • Cable Type
  • GST 18%
  • China
Product Details
  • M16 connectors are ideal for serving industrial and commercial applications. According to standard DIN EN 61076-2-106. IP-rated to IP67/IP40
  • With a screw coupling mechanism and IP40/IP67 rating
  • Over-molded cable and panel-mount receptacles are available in various styles and mounting methods
  • Ideal for many applications where a small yet rugged and compact connector solution is required
Product Specification
  • Number of Contact : 7 Pin
  • Gender : Male
  • Mounting Method : Cable Type
  • Coupling : Threaded
  • Termination : Solder
  • Shell Material : Zinc Alloys With Nikelplate, PA66+GF20%
  • Insert Material : PA66+GF20%
  • Contact Material : Copper (Silverplated)
  • Temperature Range : -25 ~ + 85℃
  • Cable Diameter : ≤ Ø6.0mm ~ ≤ Ø8.0mm
  • Mating Cycle : 500
  • Rated Current/Voltage : 5A - 60V
  • Operation Limit Voltage(AC.V.rms) : 125
  • Withstanding Voltage(AC.V.rms)/Minute : 800
  • Insulation Resistance(MΩ Min.)At DC 500V : 1000
  • Contact Resistance (MΩ Max.)At DC 1A : 7
