- Number of Contact : 3 Pin
- Gender : Male
- Mounting Method : Panel Mount
- Coupling : Threaded
- Termination : Solder
- Shell Material : Zinc Alloys With Nikelplate, PA66+GF20%
- Insert Material : PA66+GF20%
- Contact Material : Copper (Silverplated)
- Temperature Range : -25 ~ + 85℃
- Cable Diameter : ≤ Ø6.0mm ~ ≤ Ø8.0mm
- Mating Cycle: 500
- Rated Current/Voltage : 7A - 200V
- Operation Limit Voltage(AC.V.rms) : 250
- Withstanding Voltage(AC.V.rms)/Minute : 1500
- Insulation Resistance(MΩ Min.)At DC 500V : 1500
- Contact Resistance (MΩ Max.)At DC 1A : 7
38 Pc(s) In Stock
SKU
M16-3MC

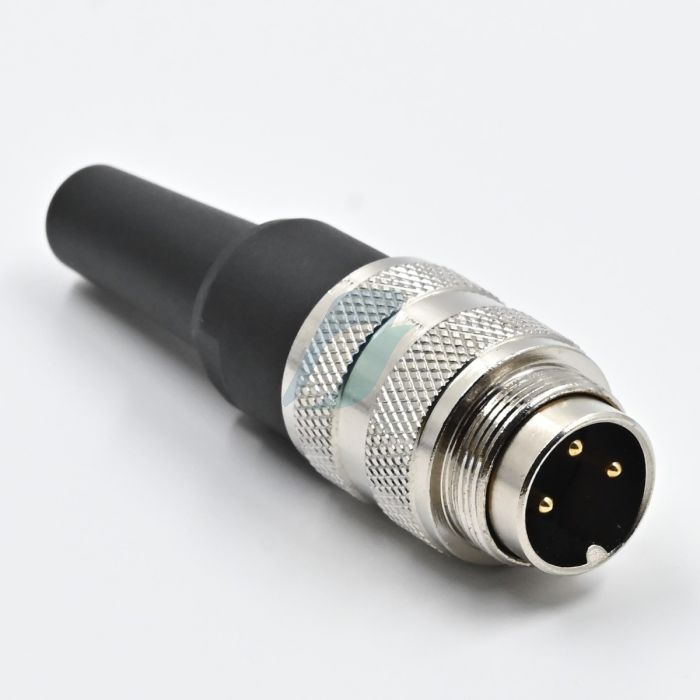

Spectra M16-3MC 3 Pin M16 Male Cable Type
₹450.00
For 1 Pc(s)
- QTY. Price
- 10+ ₹429.00
- 50+ ₹407.00
Other Available Option
- M16-3MC
- 85366990
- Spectra
- Pc(s)
- No
- 3
- Male
- Cable Type
- GST 18%
- China
Product Details
- M16 connectors are ideal for serving industrial and commercial applications. According to standard DIN EN 61076-2-106. IP-rated to IP67/IP40
- With a screw coupling mechanism and IP40/IP67 rating
- Over-molded cable and panel-mount receptacles are available in various styles and mounting methods
- Ideal for many applications where a small yet rugged and compact connector solution is required
Product Specification
