- Number of Contact : 5 Pin
- Coding : A Coding
- Gender : Female
- Orientation : Straight
- Termination : Solder
- Insert/Housing Material : Nylon66 + GF
- Contacts Material : Brass, Gold-plated
- Coupling Nut/screw Material : Metal, Brass with Nickle Plated
- Insulation Resistance : ≥ 100 MΩ
- Contacts : ≤ 5 MΩ
- Ambient Temperature : -25 ~ +85 ℃
- Mechanical Lifespan : >500 Mating Cycles
- IP Rating : IP67
75 Pc(s) In Stock
SKU
M12-5FB

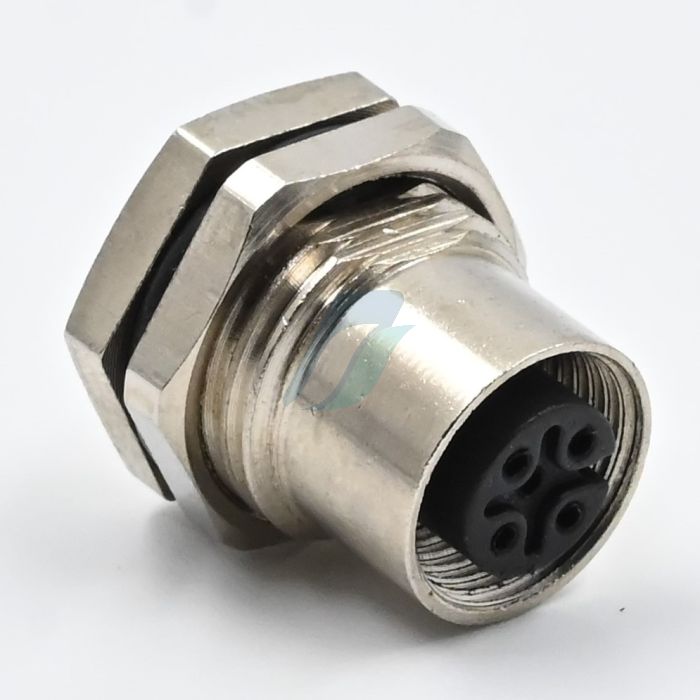

Spectra M12-5FB 5 Pin M12 Female Bulkhead
₹205.00
For 1 Pc(s)
- QTY. Price
- 10+ ₹200.00
- 50+ ₹190.00
Other Available Option
- M12-5FB
- 85366990
- Spectra
- Pc(s)
- No
- 5
- Female
- Panel Type
- GST 18%
- China
Product Details
- M12 connectors provide a rugged solution for connections in harsh industrial environments, minimize machine downtime, reduce inventory and feature knurled hex nuts which ensure proper sealing to a defined torque
- According to the standard IEC 61076-2-101
- With a screw coupling mechanism and IP67 rating
- Dust-tight and remained watertight even if temporarily submerged
