212 Pc(s) In Stock
SKU
M12-4MR

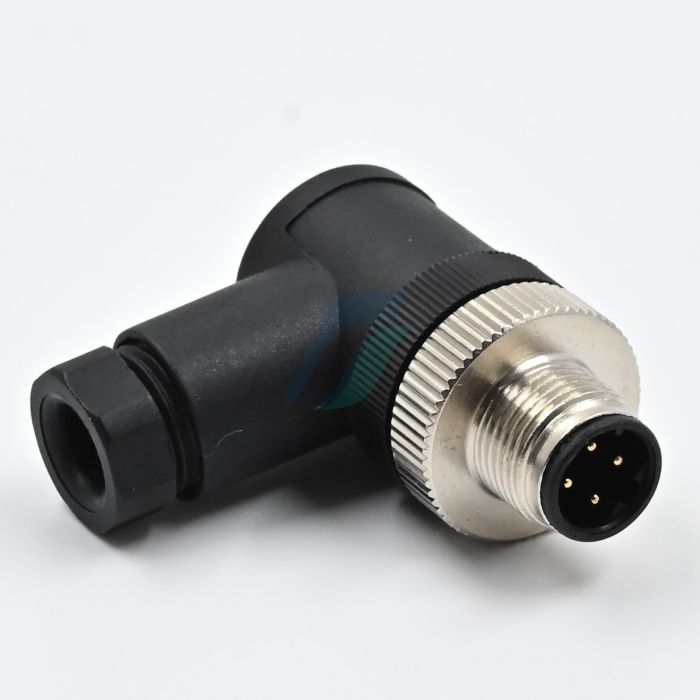

Spectra M12-4MR 4 Pin M12 Male Right Angle

₹430.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
Other Available Option
  • M12-4MR
  • 85366990
  • Spectra
  • Pc(s)
  • No
  • 4
  • Male
  • Cable Type
  • GST 18%
  • China
Product Details
  • M12 connectors provide a rugged solution for connections in harsh industrial environments, minimize machine downtime, reduce inventory and feature knurled hex nuts which ensure proper sealing to a defined torque
  • According to the standard IEC 61076-2-101
  • With a screw coupling mechanism and IP67 rating
  • Dust-tight and remained watertight even if temporarily submerged
Product Specification
  • Number of Contact : 4 Pin
  • Coding : A Coding
  • Gender : Male
  • Orientation : Right Angle
  • Termination : Solder
  • Insert/Housing Material : Nylon66 + GF
  • Contacts Material : Brass, Gold-plated
  • Coupling Nut/screw Material : Metal, Brass with Nickle Plated
  • Insulation Resistance : ≥ 100 MΩ
  • Contacts : ≤ 5 MΩ
  • Ambient Temperature : -25 ~ +85 ℃
  • Mechanical Lifespan : >500 Mating Cycles
  • IP Rating : IP67
