- Number of Contact : 4 Pin
- Coding : A Coding
- Gender : Female
- Orientation : Straight
- Termination : Screw Type
- Insert/Housing Material : Nylon66 + GF
- Contacts Material : Brass, Gold-plated
- Coupling Nut/screw Material : Metal, Brass with Nickle Plated
- Insulation Resistance : ≥ 100 MΩ
- Contacts : ≤ 5 MΩ
- Ambient Temperature : -25 ~ +85 ℃
- Mechanical Lifespan : >500 Mating Cycles
- IP Rating : IP67
134 Pc(s) In Stock
SKU
M12-4FC

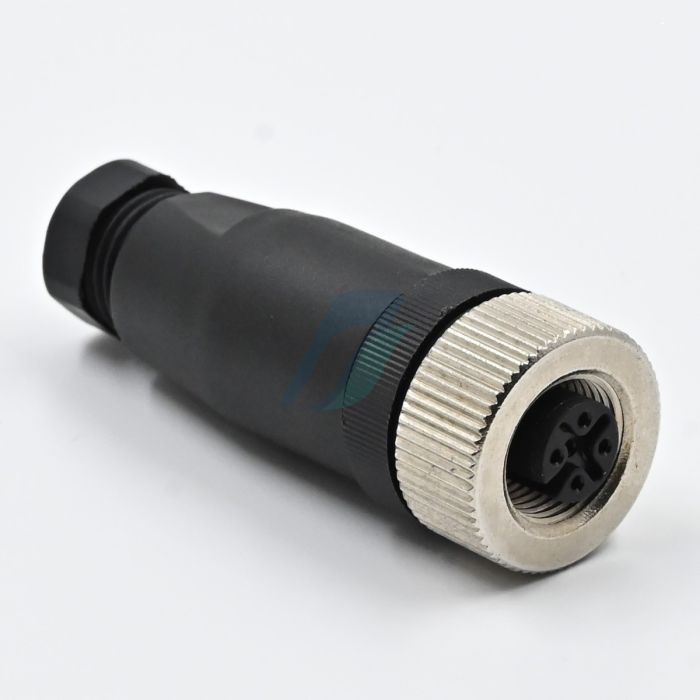

Spectra M12-4FC 4 Pin M12 Female Cable Type
₹240.00
For 1 Pc(s)
Other Available Option
- M12-4FC
- 85366990
- Spectra
- Pc(s)
- Yes
- 4
- Female
- Cable Type
- GST 18%
- China
Product Details
- M12 connectors provide a rugged solution for connections in harsh industrial environments, minimize machine downtime, reduce inventory and feature knurled hex nuts which ensure proper sealing to a defined torque
- According to the standard IEC 61076-2-101
- With a screw coupling mechanism and IP67 rating
- Dust-tight and remained watertight even if temporarily submerged
Product Specification
Datasheet
