- Connector : M12X1, A Coding
- Contacts : 3 Pin A Coding
- Gender : Male to Female
- Type : Y Type
- Insert/Housing Material : Nylon66 + GF
- Contacts Material : Brass, Gold-plated
- Coupling Nut/screw Material : Metal, Brass with Nickle Plated
- Insulation Resistance : ≥ 100 MΩ
- Contacts : ≤ 5 MΩ
- Ambient Temperature : -25 ~ +85℃
- Mechanical Lifespan : >500 Mating Cycles
- IP Rating : IP67
17 Pc(s) In Stock
SKU
M12-3Y

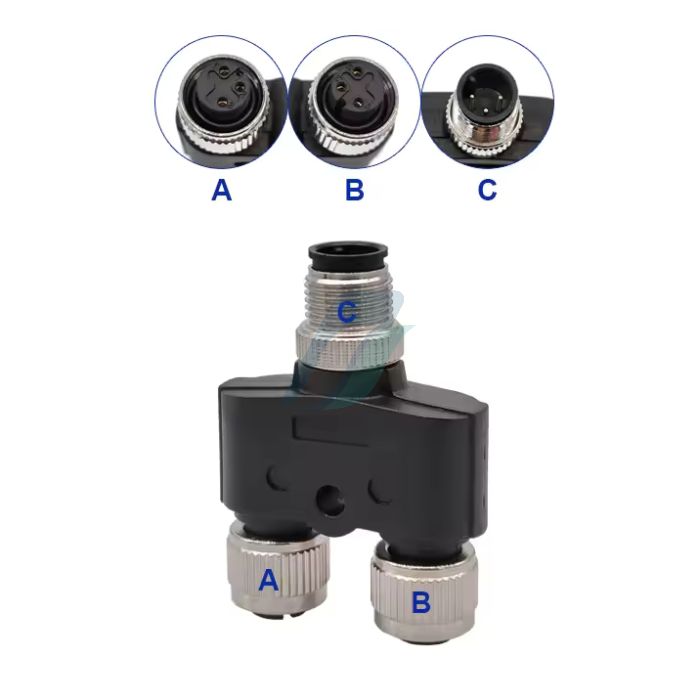

Spectra M12-3Y 3 Pin M12 Y-Splitter Male 2 Female
₹750.00
For 1 Pc(s)
Other Available Option
- M12-3Y
- 85366990
- Spectra
- Pc(s)
- No
- 3
- GST 18%
- China
Product Details
- M12*1 thread locking mechanism, anti-vibration locking design
- Easy quick connect and disconnect coupling
- Pin configurations: 3, 4, 5 and 8 positions
- A, B, D coding available
- Meets IP67/IP68 waterproof requirements
Product Specification
