- Housing Material : PVC
- Insert Material : Fame Retardancy PBT
- Contact Material : Phosphor Bronze Stamp Pin T=0.30mm
- IDC Contact Material : Phosphor Bronze T=0.50mm with TIN Plating
- Voltage Rating : 125 VAC RMS
- Current Rating : 1.5AMP
- Contact Resistance : 100 Milliohms Max
- Insulation Resistance : 1000 Megohms Min @500 VDC
- Dielectric Strength : 750 VAC RMS 60 Hz, 1 Min
- Storage : -40° To +85°
- Operation : 0° To 70°
800 Pc(s) In Stock
SKU
9203-CAT5

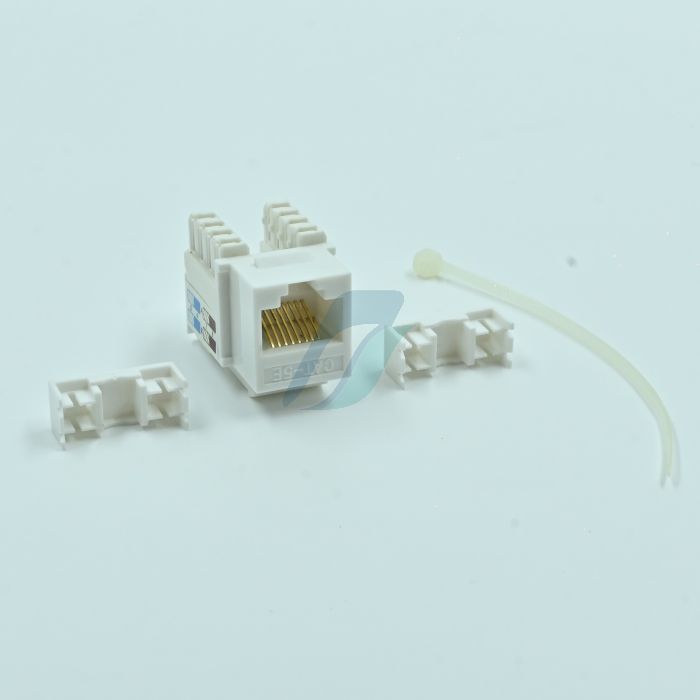

Spectra CAT-5 Information Outlet
₹90.00
Other Available Option
- 9203-CAT5
- 85366990
- Pc(s)
- Yes
- GST 18%
- China
Product Specification
