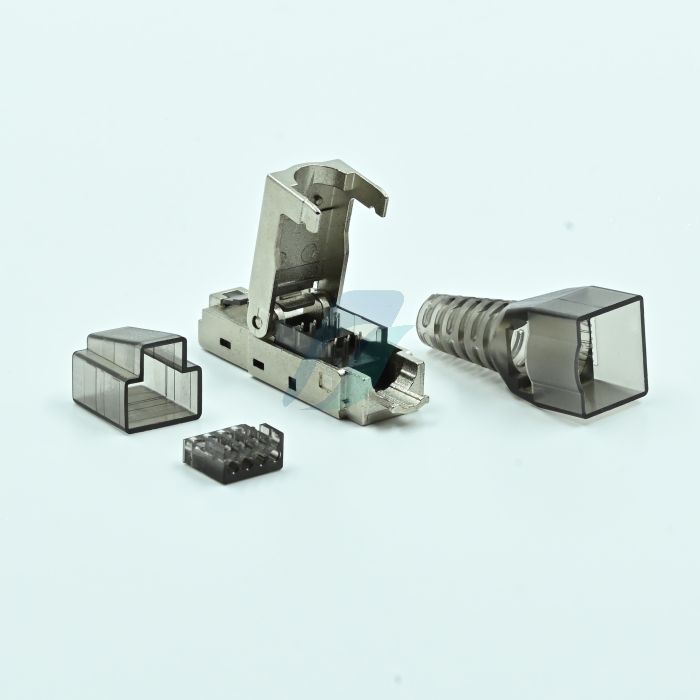

Spectra 8P8C CAT-6 Modular Plug Shielded Tool Less

₹200.00

Other Available Option

Contacts

Product Specification

Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
Adjustable Strain Relief (6mm to 9.5mm Cable OD)
Cable Jacket Diameter from 6 to 9.5 mm
Suitable for Power over Ethernet (PoE, PoE plus, and UPoE)
Anti-burn performance: product made from Kirsite I PC or PCB(UL94V-0)
Gold Plated Phosphor Bronze Blade: phosphor bronze and gold plating (3-50uinch)
Operation Temperature : - 40°C ~ 60°C
Relative humidity: 85%(30 ?C), Air pressure: 70-106Kpa
Mating durability not less than 750 cycles
Intermediate resistance: no more than 20m ohm in normal atmosphere pressure (not including bulk resistor)

Product Details

CAT6A Class Ea RJ45 plug to be assembled in the field Easy Assembly - easily terminated in the field in 2 minute without any special tools

Datasheet
