834 Pc(s) In Stock
SKU
9101-5162GY

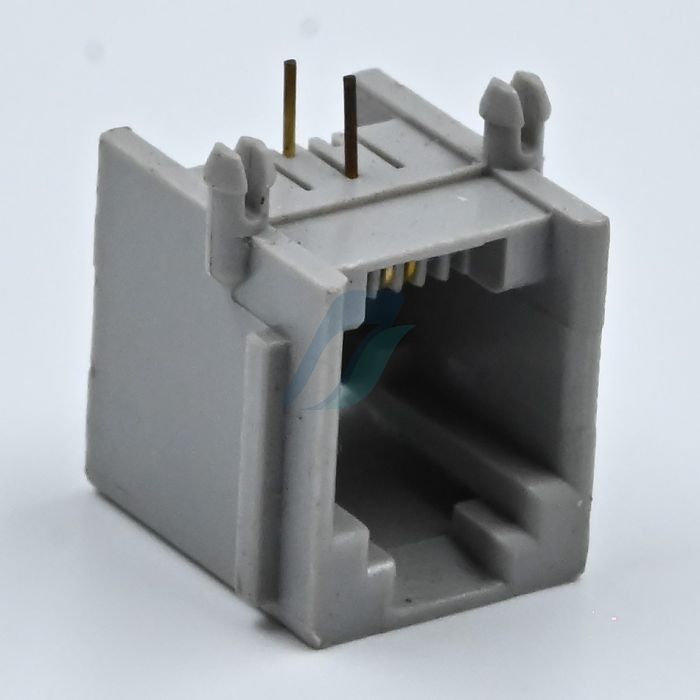

Spectra 5162-NSG Socket With Knotch (Grey)

₹12.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 9101-5162GY
  • 85366990
  • Pc(s)
  • Yes
  • GST 18%
  • China
Product Specification
  • Housing : PBT Mixed 15% Fiber 94V-0
  • Contact Type : Round , Flat Pin
  • Contact Material : Phosphor Bronze Alloy
  • Gold over nickel plated in contact area Tin-lead over nickel in solder area
  • Shielded : Brass/nickel Alloy with tin plated
  • current Rating : 1A max
  • Voltage Rating : 150 VAC max
  • Contact Resistance : 30 m?max
  • Dielectric Withstanding Voltage : @1,000 Vrms 1.min
  • Insulation Resistance : 500M? /100VDC min between adjacent contacts
