- Impedance : 50 Ohms
- Frequency Range : DC To 18GHZ & DC To 12 4GHZ
- Insulation Resistance : 5000 MOhms Min
- Inner Contact Resistance : 2.0 Mohms Max
- Outer Contact Resistance : 2.0 MOhms Max
- Working Voltage : 500V, 335V
- Dielectric Withstanding Voltage [RMS] : 1000V, 750V
- VSWR : 1.05+0 005f, 1.07+0 008f & 1.15+0 001f, 1.15+0 002f
- Insertion Loss : 0.6√FREQ GHZ dB MAX Tested @6GHZ [Cable Fixing Styles Only]
- RF Leakage : -90DB@2 5GHZ
- Mating Torque : 0.79Nm To 0 1.13Nm [7 To 10 in lbs]
- Durability : 500 Cycles With Contact
- Temperature Range : 100 Cycles Without Contact -65 ̊C To 165 ̊C
- Body And Coupling Nut : Flexible Cable Fixing : Brass, Nickel Plated
- Body And Coupling Nut : Semi Rigid Cable Fixing : Brass, Gold Plated
- Body And Coupling Nut : PCB And Panel Mount : Brass, Nickel Plated
1533 Pc(s) In Stock
SKU
8103-FPN-4H

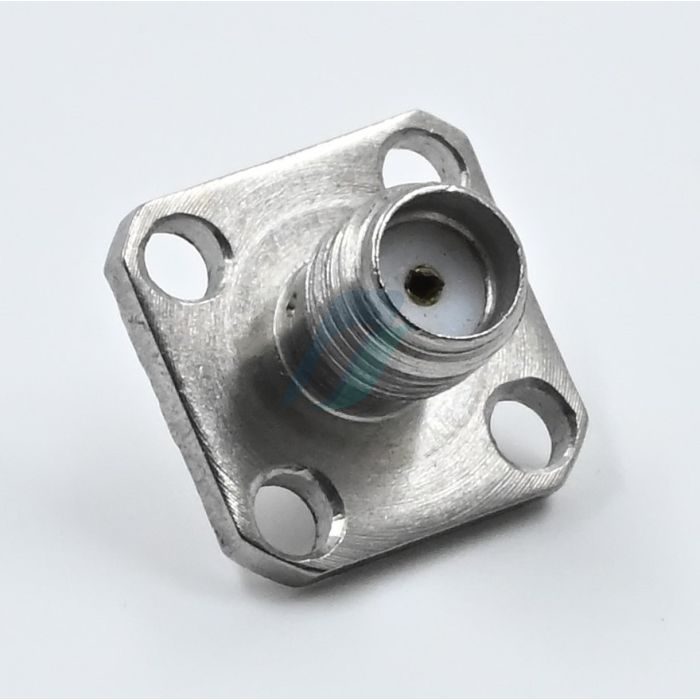

Spectra SMA Female Panel 4 Hole
₹80.00
For 1 Pc(s)
Other Available Option
- 8103-FPN-4H
- 86366990
- Pc(s)
- Spectra
- Female
- No
- GST 18%
- Taiwan, Province of China
Product Specification
