Out of stock
SKU
8103-01-FF

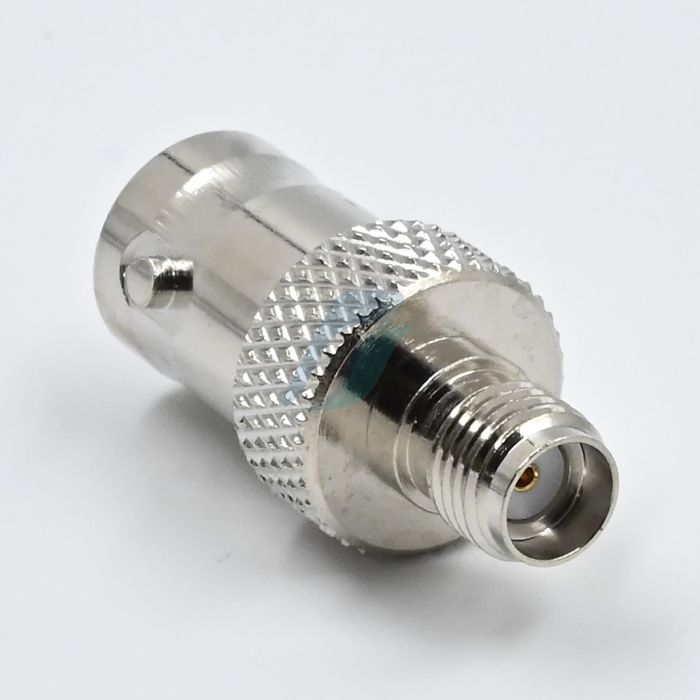

Spectra SMA Female To BNC Female Adapter

₹110.00 For 1 Pc(s)
  • 8103-01-FF
  • 86366990
  • Pc(s)
  • Spectra
  • No
  • GST 18%
  • Taiwan, Province of China
Product Specification
  • Impedance : 50 Ohms
  • Frequency Range : DC To 18GHZ & DC To 12 4GHZ
  • Insulation Resistance : 5000 MOhms Min
  • Inner Contact Resistance : 2.0 Mohms Max
  • Outer Contact Resistance : 2.0 MOhms Max
  • Working Voltage : 500V, 335V
  • Dielectric Withstanding Voltage [RMS] : 1000V, 750V
  • VSWR : 1.05+0 005f, 1.07+0 008f & 1.15+0 001f, 1.15+0 002f
  • Insertion Loss : 0.6√FREQ GHZ dB MAX Tested @6GHZ [Cable Fixing Styles Only]
  • RF Leakage : -90DB@2 5GHZ
  • Mating Torque : 0.79Nm To 0 1.13Nm [7 To 10 in lbs]
  • Durability : 500 Cycles With Contact
  • Temperature Range : 100 Cycles Without Contact -65 ̊C To 165 ̊C
  • Body And Coupling Nut : Flexible Cable Fixing : Brass, Nickel Plated
  • Body And Coupling Nut : Semi Rigid Cable Fixing : Brass, Gold Plated
  • Body And Coupling Nut : PCB And Panel Mount : Brass, Nickel Plated
