5000 Mtr(s) In Stock
SKU
8004-C6UTP

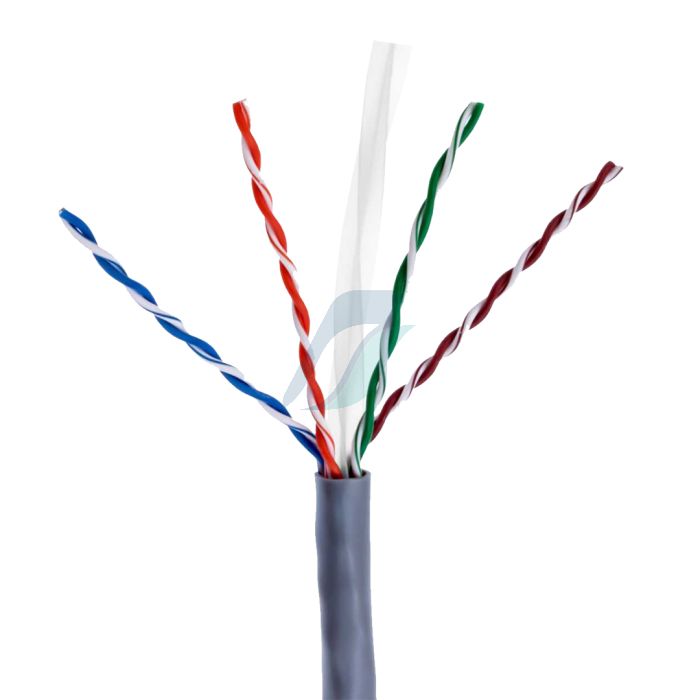

Spectra CAT-6 UTP Cable

₹20.00 For 1 Mtr(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 8004-C6UTP
  • 202331
  • 305
  • Spectra Cables
  • Mtr(s)
  • Yes
  • GST 18%
  • China
Product Details
CAT6 UTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz.
Product Specification
  • No. of Cord : 4 Pair
  • Conductor Material : Bare Copper Solid
  • Conductor Construction : 23AWG; 1 / 0.565 ± 0.008 mm
  • Insulation Material : Polyethylene
  • Insulation Thickness : 0.23±0.02 mm
  • Insulation Diameter : 1.03 ± 0.05 mm
  • Jacket Material : PVC
  • Jacket Thickness : 0.50 mm(Min. Thichness: 0.45mm)
  • Jacket Diameter : 6.3 ± 0.20 mm
  • Insulation Resistance : Min. 5000 mega ohms-km at 20℃
  • Temperature Rating : 60℃
  • Voltage Rating : 30V
