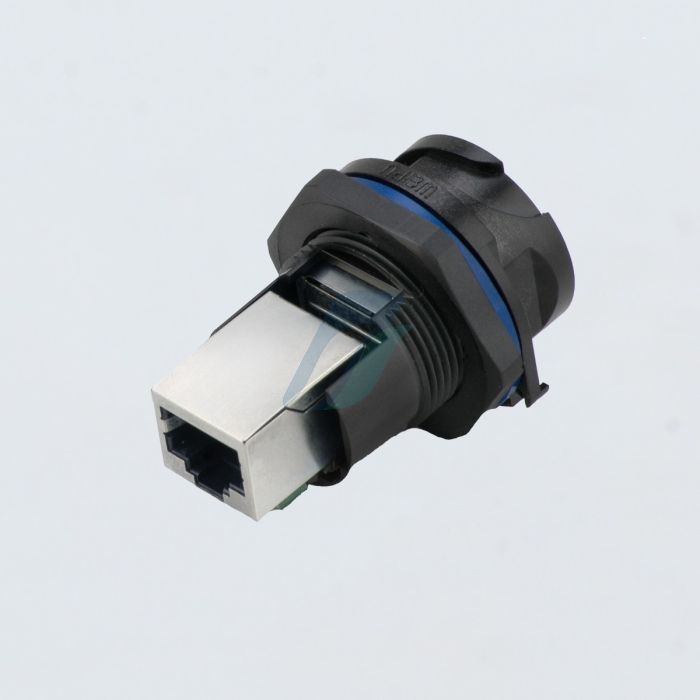

Weipu 7105-RJ45F71 IP67 RJ-45 Socket

₹475.00

Product Overview

SKU 7105-RJ45F71
HSN Code 85366990
Manufacturer Spectra
UOM Pc(s)
ROHS Compliance Yes
Gender Socket
Tax GST 18%
Country of Origin China

Product Specification

Coupling : Bayonet
Shell Material : lPC, fire resistance: V-0
IP Rating : IP67
Cable Out Diameter Range : 5.6mm
Mating Cycle : 500
Temperature Range : 40°C~ + 85°C

Product Details

water tight- IP67

quick connecting

straight & angled types

RJ45 series is a medium size IP67 waterproof connector, designed with a bayonet coupling system for ethernet connection.
1) medium size
2) RJ45
3) straight and angled type receptacle
4) IP67 after mated
5) cap available for receptacle side
6) assembly available

Applications: This connector has been widely used in many ethernet applications that request quick connecting and water resistance abilities. Our RJ45 series is very popular among applications like outdoor control boxes, where high waterproof resistance is requested.

Datasheet

WEIPU.pdf
