1501 Pc(s) In Stock
SKU
7011-09

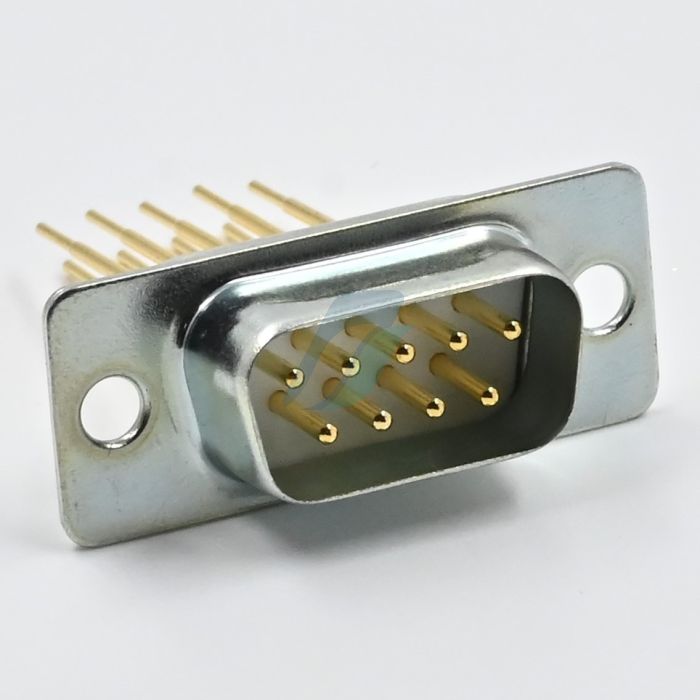

Spectra 9 Pin D-Sub Male Wire Wrap

₹50.00 For 1 Pc(s)
( Price exclusive of GST )
  • QTY. Price
  • 50+ ₹48.00
  • 200+ ₹46.00
Request For Higher Quantity Quotation
Other Available Option
  • 7011-09
  • 85366990
  • Pc(s)
  • Spectra
  • 9
  • Wire Wrap
  • Male
  • Yes
  • GST 18%
  • China
Product Specification
  • Orientation : Vertical
  • Termination Style : PCB Solder
  • Pin Pattern : Signal
  • Current Rating : 5A per contact
  • Voltage Rating : 300V rms at 50 Hz
  • Resistance (Contact) < 10mΩ
  • Operating Temperature Range : -55°C to +125°C
  • Durability (Mating cycles) Std Class (>200 Mating Cycles)
  • Plating Shell : Bright Pure Tin over Nickel
  • Plating Contact area : Gold over Nickel
  • EU RoHS : Compliant
