Out of stock
SKU
7009-37

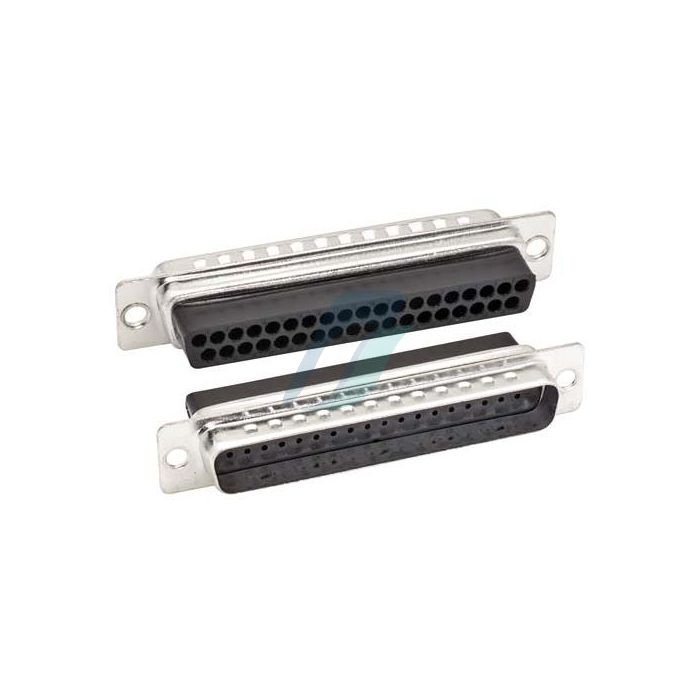

Spectra 37 Pin D-Sub Male Individual Housing

₹50.00 For 1 Pc(s)
Other Available Option
  • 7009-37
  • 85366990
  • Pc(s)
  • Spectra
  • 37
  • Individual Crimp
  • Male
  • Yes
  • GST 18%
  • China
Product Specification
  • Orientation : Vertical
  • Termination Style : Pin Crimp
  • Pin Pattern : Signal
  • Current Rating : 5A per contact
  • Voltage Rating : 300V rms at 50 Hz
  • Resistance (Contact) < 10mΩ
  • Operating Temperature Range : -55°C to +125°C
  • Durability (Mating cycles) Std Class (>200 Mating Cycles)
  • Plating Shell : Bright Pure Tin over Nickel
  • Plating Contact area : Gold over Nickel
  • EU RoHS : Compliant
Datasheet
