5960 Pc(s) In Stock
SKU
7002-15

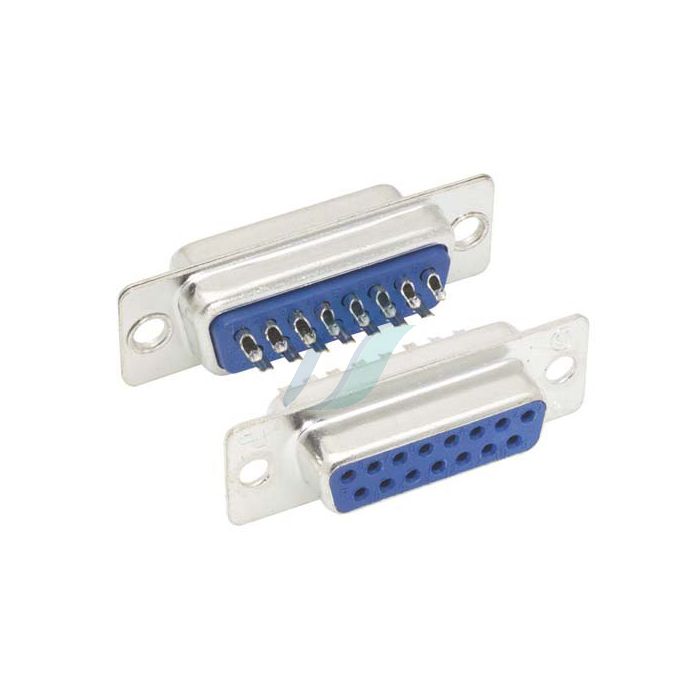

Spectra 15 Pin D-Sub Female Solder

₹7.00 For 1 Pc(s)
( Price exclusive of GST )
Other Available Option
  • 7002-15
  • 85366990
  • Pc(s)
  • Spectra
  • 15
  • Solder
  • Female
  • Yes
  • GST 18%
  • China
Product Specification
  • Orientation : Vertical
  • Termination Style : Solder Bucket
  • Pin Pattern : Signal
  • Current Rating : 5A per contact
  • Voltage Rating : 300V rms at 50 Hz
  • Resistance (Contact) < 10mvΩ
  • Operating Temperature Range : -40°C to +105°C
  • Durability (Mating cycles) Std Class (>200 Mating Cycles)
  • Plating Shell : Matte Tin
  • Plating Contact area : Gold over Nickel
  • EU RoHS : Compliant
