Out of stock
SKU
5107-05

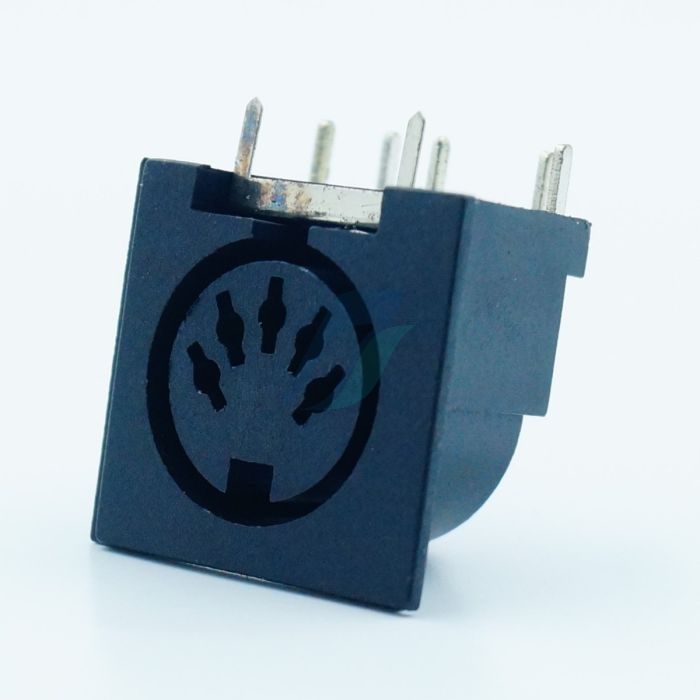

Spectra 5 Pin DIN Female PCB Right Angle

₹25.00 For 1 Pc(s)
  • QTY. Price
  • 50+ ₹23.75
  • 200+ ₹22.50
Request For Higher Quantity Quotation
Other Available Option
  • 5107-05
  • 85366990
  • Pc(s)
  • Spectra
  • 5
  • Female
  • No
  • GST 18%
  • China
Product Specification
  • Type of installation : Welded
  • Plastic material : Thermoplastic
  • Plastic flame retardant grade : UL94V-0/UL94V-2/UL94HB
  • Plastic regular color : Black
  • Pin terminal material : Copper alloy
  • Pin terminal conventional plating : Selective gilding
  • Iron shell material : Iron
  • Conventional electroplating : Nickel plated/tin plated
  • Rated current : 1A
  • Rated voltage : 30V DC
  • Contact resistance : 30mO max
  • Insulation resistance : 1000MO minimum
  • Withstand voltage : 500V AC for 1 minute
  • Operating temperature : -40~+105°
