70 Pc(s) In Stock
SKU
2137-A-FMC3.0

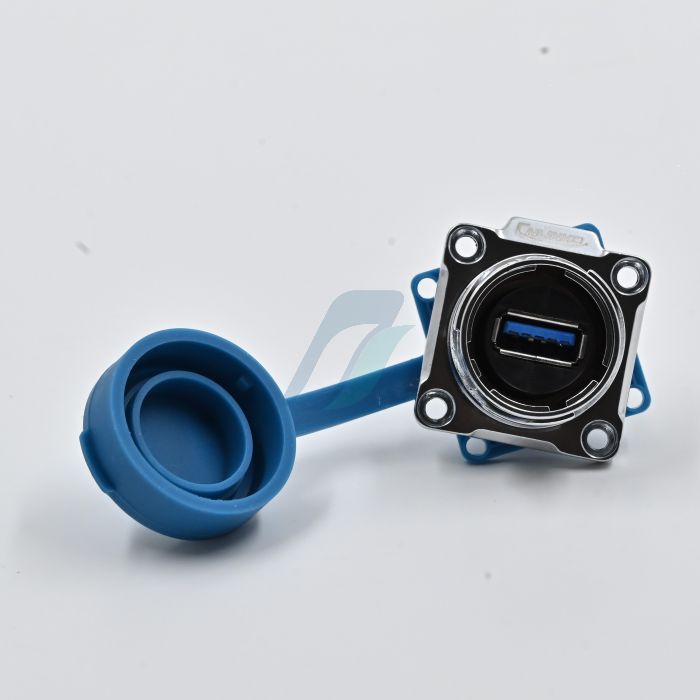

Spectra USB Metal Waterproof A Female IP 67/65

₹550.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
Other Available Option
  • 2137-A-FMC3.0
  • 85366990
  • Pc(s)
  • Spectra
  • Female
  • No
  • GST 18%
  • China
Product Details
  • For harsh industrial or outdoor environments application
  • Machined contacts to guarantee stability and smooth signals transmission
  • USB2.0 or USB3.0 type with IP67/65 waterproof protection rating
Product Specification
  • Product Type : USB Convert Serial Cable Connector
  • Coupling : Quickly Bayonet Connect, Plug/Unplug
  • Housing and Insert Material : High Performance Engineering Plastics, Zinc Alloy
  • Contact Pin : Copper Alloy with Gold Plating
  • Spring : Stainless Steel
  • Sealing : Silica Gel
  • Protection Level : IP67/65
  • Working Temperature : -40℃ to 80℃
  • Durability : > 500 times
  • Flammability Rating : UL94-V0
  • Cable Type : 0.15 mm² to 0.2mm² /26 – 24 AWG
  • Diameter Range : Φ 5.5mm to Φ 7mm
  • Contact Diameter * Qty : 9
  • Current Rating(A) : 1.5A
  • Operating Voltage(AC.V.rms) : 500V
