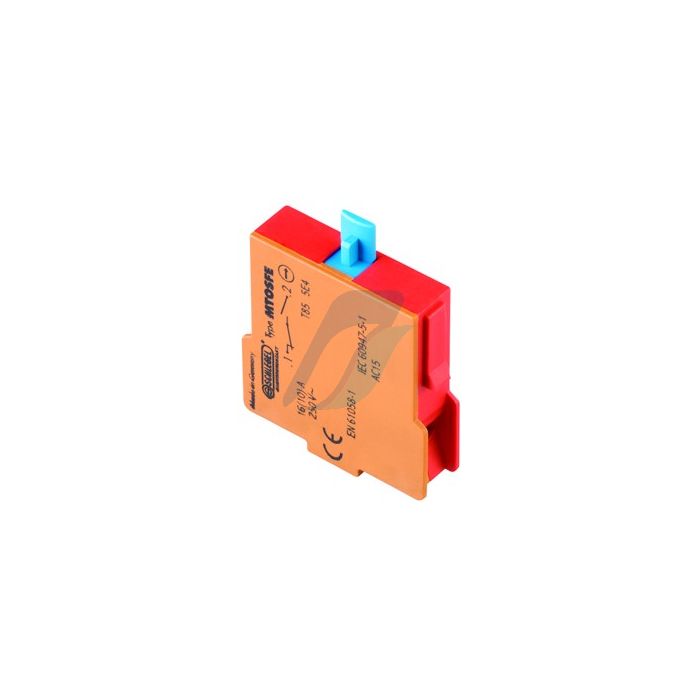

Schlegel Self-Monitoring Emergency Contact Block, Requires Only One Place In The Module Holder

Special Price ₹945.00 For 1 Pc(s) Regular Price ₹1,445.00

Product Specification

Protection class : II (protective insulation)
Degree of protection : IP20
Switching function : Momentary Action
Travel : 6 mm
Illumination : No
With labelling Option : No
Contact Equipment : 1 NC (+ 1 NO)
Connection Type : Screw Connection 2x 2.5 mm²
Colour : Red / Brown
Positive Opening : acc. to EN60947-5-1,appendix K
Operating Temperature :-30°C ... 85°C, without illumination -30°C ... 55°C, using incandescent lamps -30°C ... 65°C, using LEDs
Electrical life : 100,000 switching cycles at rated load
Storage Temperature : -50°C ... 85°C
Mechanical life : 100,000 switching cycles
Contact Material : AgNi

Datasheet
