- Capacity : 0.03 – 0.5 mm² / AWG 32 – 20
- Acc. to : AS22520/2-01
- Max. contact Ø : 5.0 mm
- Finish : Chrome plated
1 Pc(s) In Stock
SKU
8736 0000 61

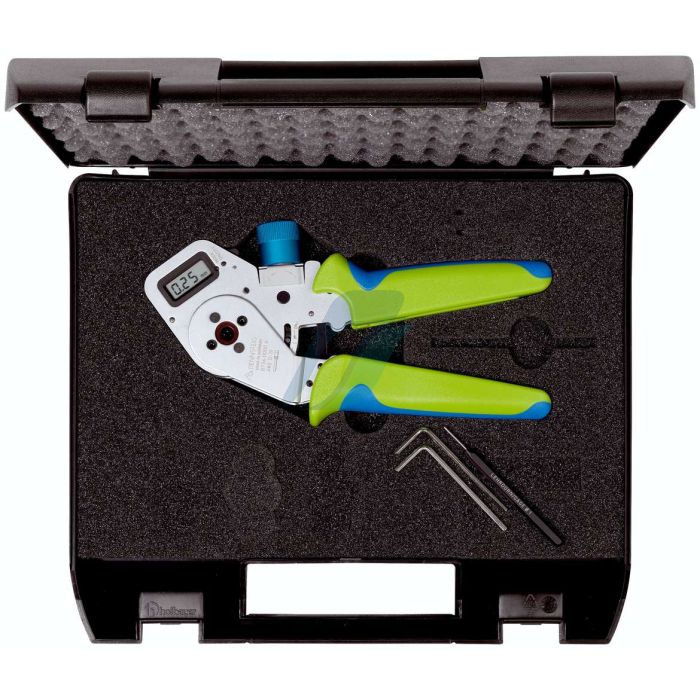

Rennsteig Crimping Tool 8.73-6 (MIL) in box
₹91,282.00
For 1 Pc(s)
- 8736 0000 61
- 4049002056956
- Pc(s)
- Rennsteig
- 82032000
- GST 18%
- 820
- 260 x 220 x 50 mm
- No
- No
- Germany
Product Details
- Suitable for crimping turned pin and socket contacts, primarily according to AS39029 and EN3155
- Crimp indenter geometry and adapter ring fulfil specifications from the AS22520 aviation standard
- Multifunctional digital display, setting in mm, inches or comparable selector positions according to AS22520 aviation standard
- Crimp indenter closing can be adjusted in steps of 0.01 mm and can be viewed digitally
- Checking of default setting with enclosed test gauge
- Recalibration function
- Electronic wear monitoring (patented) with warning function
- Reliable crimping with forced-lock completion of crimping operation and synchronous closing of crimp indenters
- Various setting functions accessible
Product Specification
