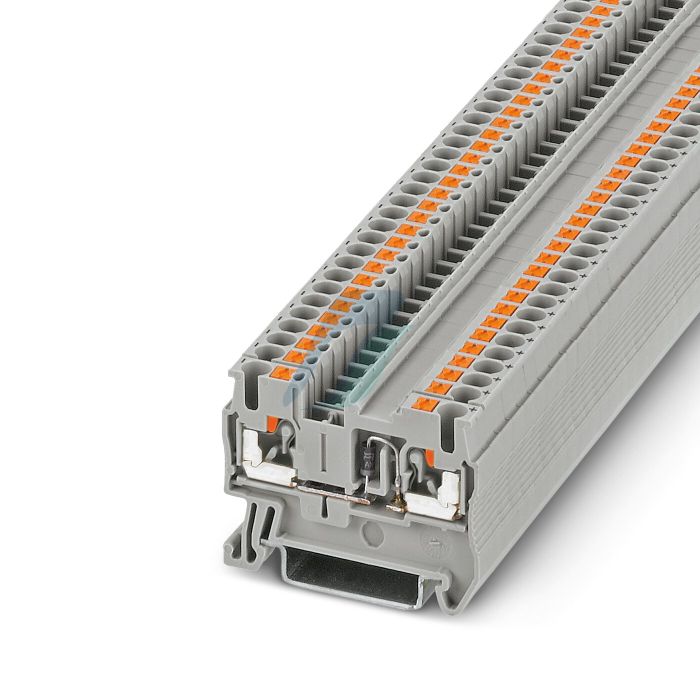

Phoenix Contact Component terminal block - PT 2,5-DIO/R-L

₹173.03 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 3210237
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 6.74
ROHS Compliance No
Tax GST 18%
Country of Origin Poland

Product Details

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated 1N4007 diode, nom. voltage: 800 V, nominal current: 0.5 A, 1 level, connection method: Push-in connection, Rated cross section: 1 mm2, cross section: 0.14 mm2 - 4 mm2, mounting: NS 35/7,5, NS 35/15, color: gray

Product Specification

Type : Feed Through
Number of Positions : 2
Number of Levels : 1
Terminal – Width : 5.2mm
Termination Style : Push In, Spring
Current – IEC : 0.5 A
Voltage – IEC : 800V
Wire Gauge or Range – AWG : 12-26 AWG
Wire Gauge or Range – mm² :0.14-4mm²
Color : Gray
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 10mm
