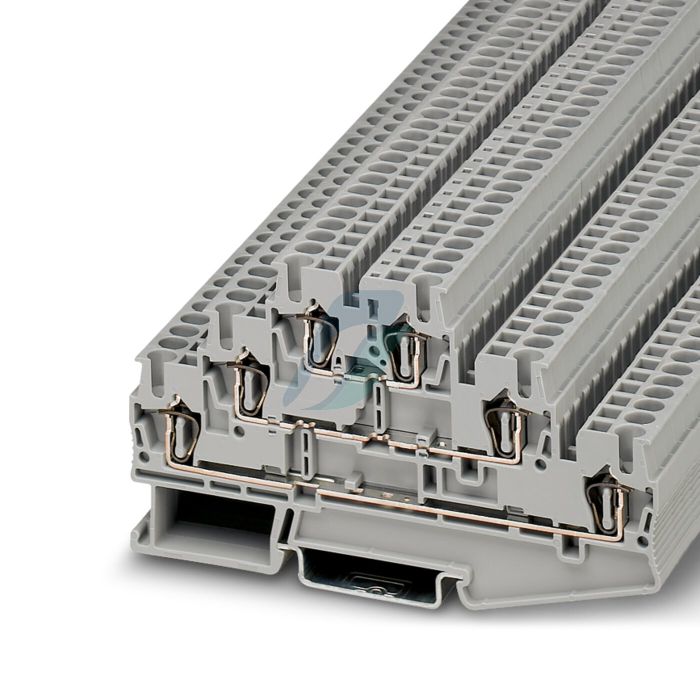

Phoenix Contact Multi-level terminal block - ST 2,5-3L

₹74.81

Product Overview

SKU 3036042
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 17.724
ROHS Compliance No
Tax GST 18%
Country of Origin Poland

Product Specification

Type : Feed Through
Number of Positions : 6
Number of Levels : 3
Terminal – Width : 5.2mm
Termination Style : Push In, Spring
Current – IEC : 20 A
Voltage – IEC : 500V
Wire Gauge or Range – AWG : 12-28 AWG
Wire Gauge or Range – mm² : 0.08-4mm²
Color : Gray
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 10mm

Product Details

Multi-level terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Spring-cage connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
