- Number of connections : 3
- Number of rows : 1
- Insulating material : PA
- Color : Green-Yellow
- Rated surge voltage : 8 kV
- Flammability rating according to UL 94 : V0
- Stripping length : 8 mm
- Cross section AWG : 24 ... 12
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) : 125 °C
- Relative insulation material temperature index (Elec., UL 746 B) : 130 °C
25 Pc(s) In Stock
SKU
3034125

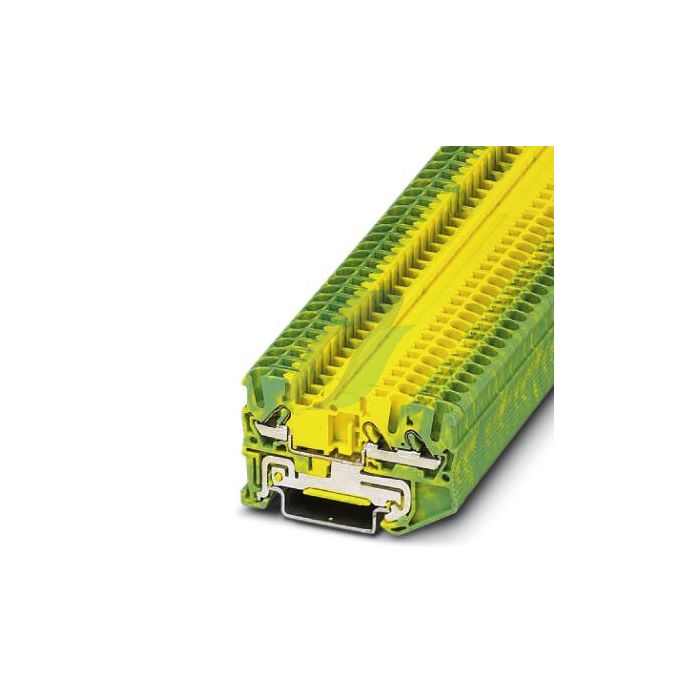

Phoenix Contact Ground Terminal Block - DT 2,5-TWIN-PE
₹65.00
- 3034125
- 85369010
- Pc(s)
- Phoenix Contact
- 10.4
- No
- GST 18%
- Germany
Product Specification
Product Details
Feed-through terminal block, connection method: Leg spring connection, number of connections: 3, cross section: 0.2 mm2 - 4 mm2, AWG: 24 - 12, width: 5.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15
