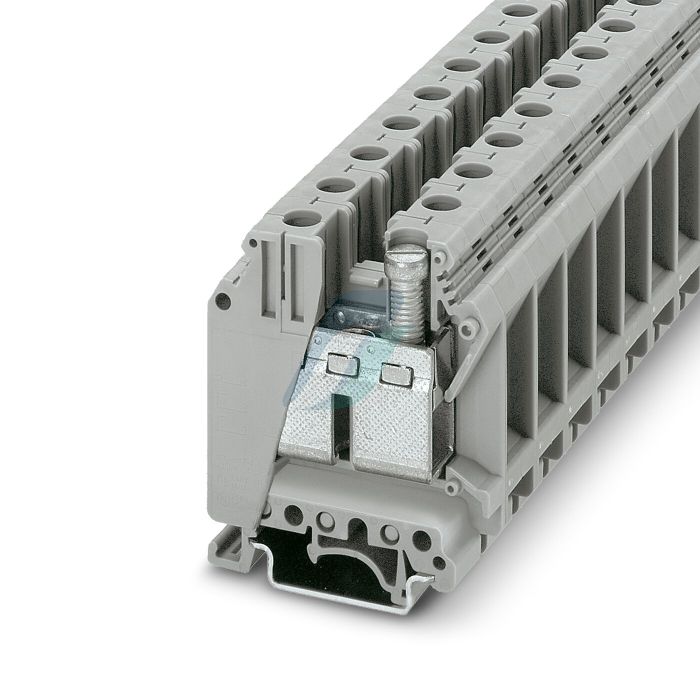

Phoenix Contact Feed-through terminal block - UK 35

₹97.85 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 3008012
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 57.6
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, cross section: 0.75 mm2 - 50 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Product Specification

Type : Feed Through
Number of Positions : 2
Number of Levels : 1
Terminal – Width : 15.2mm
Termination Style : Screw
Current – IEC : 150 A
Voltage – IEC : 1000V
Wire Gauge or Range – AWG : 1/0-18 AWG
Wire Gauge or Range – mm² : 0.75-50mm²
Color : Gray
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 16mm
