- Type : Feed Through
- Number of Positions : 2
- Number of Levels : 1
- Terminal – Width : 15.2mm
- Termination Style : Screw
- Current – IEC : 125 A
- Voltage – IEC : 800V
- Wire Gauge or Range – AWG : 2-18 AWG
- Wire Gauge or Range – mm² : 0.75-35mm²
- Color : Gray
- Material – Insulation : Polyamide (PA), Nylon
- Stripping Length : 16mm
6 Pc(s) In Stock
SKU
3006182

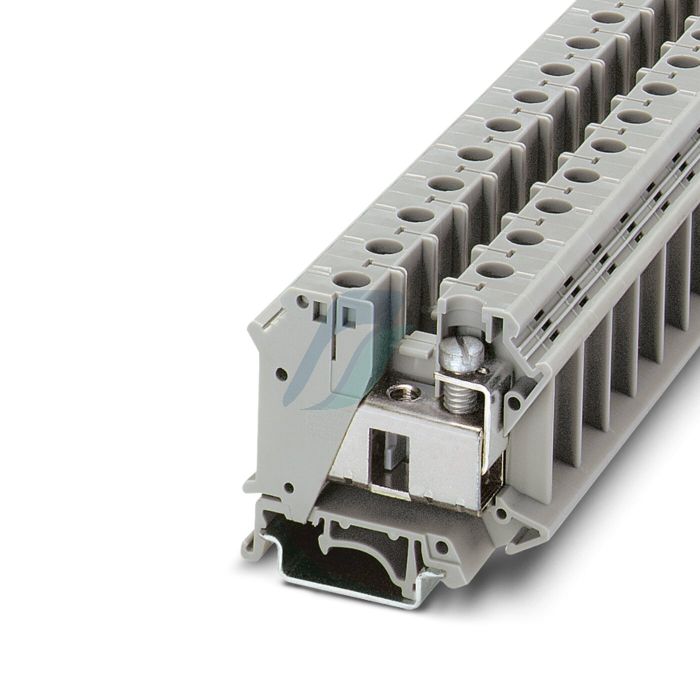

Phoenix Contact Installation terminal block - UIK 35
₹109.30
For 1 Pc(s)
- 3006182
- 85369010
- Pc(s)
- Phoenix Contact
- 46.45
- No
- GST 18%
- India
Product Details
Installation terminal block, nom. voltage: 800 V, nominal current: 125 A, Screw connection, Rated cross section: 35 mm2, cross section: 0.75 mm2 - 35 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
Product Specification
