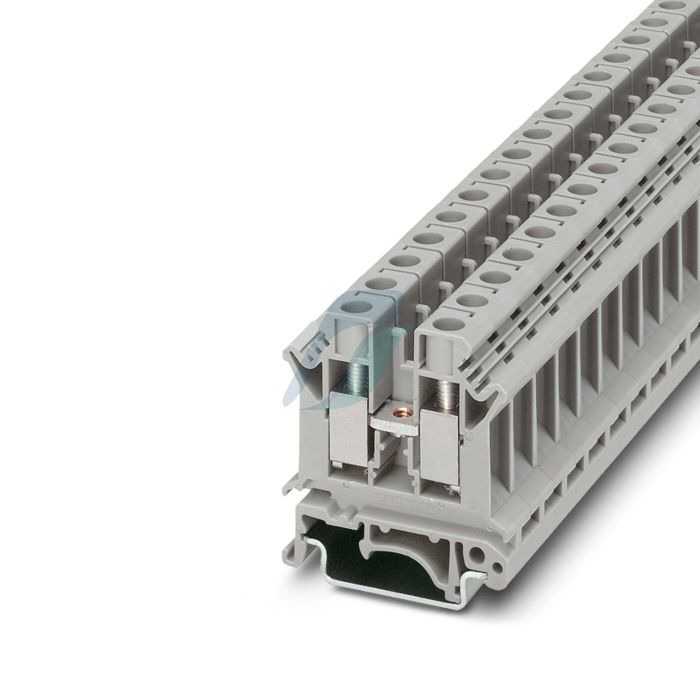

Phoenix Contact Feed-through terminal block - UK 10 N

₹33.44

Product Overview

SKU 3005073
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 16.942
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Specification

Type : Feed Through
Number of Positions : 2
Number of Levels : 1
Terminal – Width : 10.2mm
Termination Style : Screw
Current – IEC : 57 A
Voltage – IEC : 800V
Wire Gauge or Range – AWG : 6-24 AWG
Wire Gauge or Range – mm² : 0.5-16mm²
Color : Gray
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 10mm

Product Details

Feed-through terminal block, nom. voltage: 800 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
