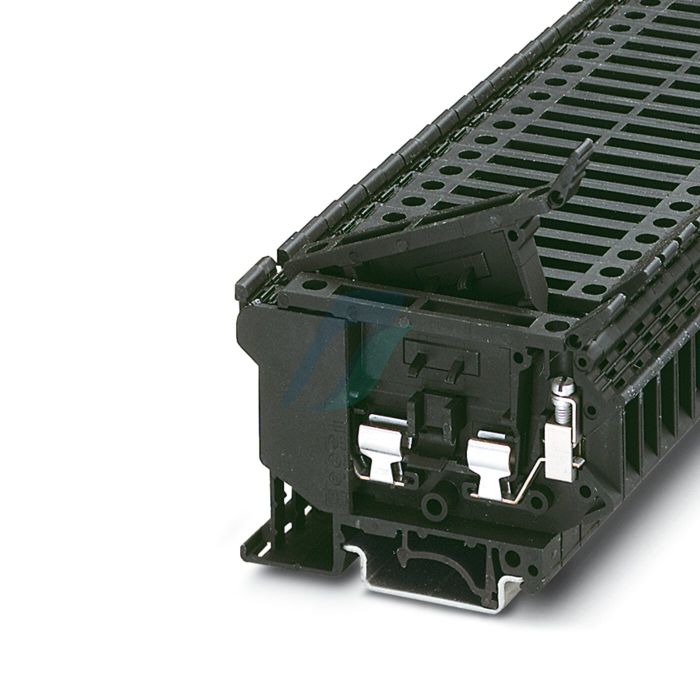

Phoenix Contact Fuse modular terminal block - UK 5-HESI

₹47.26 For 1 Pc(s)

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 3004100
HSN Code 85369095
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 18.346
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20 / 5 x 25 / 5 x 30, nom. voltage: 800 V, nominal current: 6.3 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1 mm2, cross section: 0.2 mm2- 4 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black

Product Specification

Type : Disconnect
Number of Positions : 2
Number of Levels : 1
Terminal – Width : 8.2mm
Termination Style : Screw
Current – IEC : 6.3 A
Voltage – IEC : 500V
Wire Gauge or Range – AWG : 10-26 AWG
Wire Gauge or Range – mm² : 0.2-4mm²
Color : Black
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 8mm
