Phoenix Contact Ground modular terminal block - USLKG 10 N

₹274.51 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 3003923
HSN Code 85369010
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 30.89
ROHS Compliance No
Tax GST 18%
Country of Origin Germany

Product Details

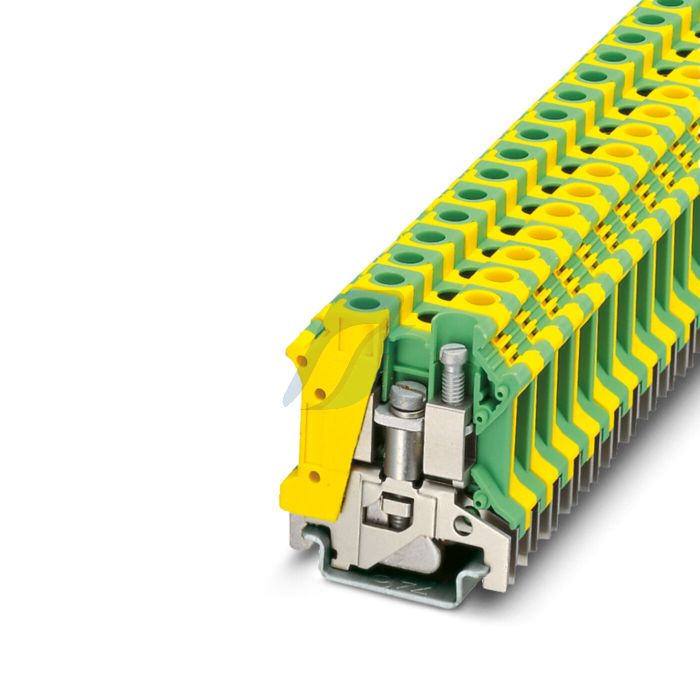

Ground modular terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting: PE foot with mounting screw, M4, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow

Product Specification

Type : Ground, Earth
Number of Positions : 2
Number of Levels : 1
Terminal – Width : 10.2mm
Termination Style : Screw
Current – IEC : 57 A
Material Flammability Rating : UL94 V-0
Wire Gauge or Range – AWG : 6-24 AWG
Wire Gauge or Range – mm² : 0.5-16mm²
Color : Green, Yellow
Material – Insulation : Polyamide (PA), Nylon
Stripping Length : 10mm
