Phoenix Contact Relay Module - PLC-RSC- 12DC/21-21

₹821.16 For 1 Pc(s)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2967235
HSN Code 85364190
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 76.37
ROHS Compliance No
Tax GST 18%
Country of Origin India

Product Details

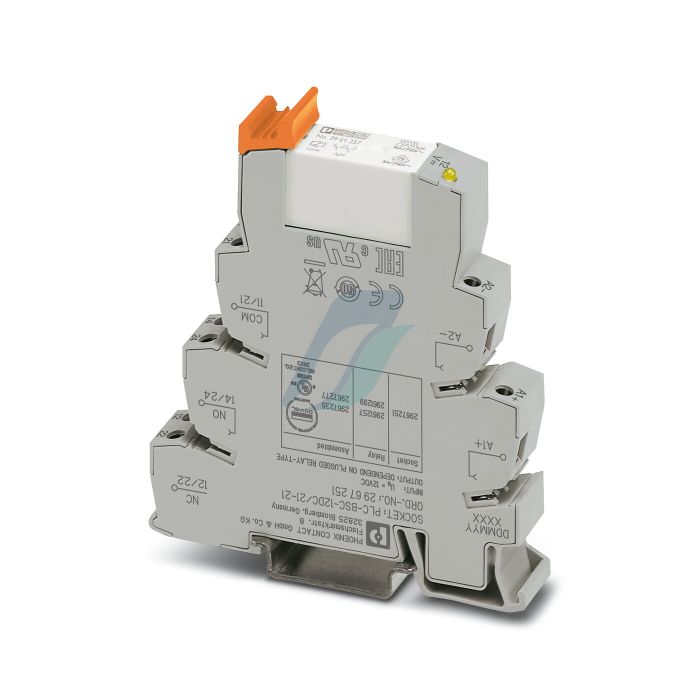

PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 12 V DC

Product Specification

Mounting Type : DIN Rail
Coil Voltage : 12VDC
Contact Form : DPDT (2 Form C)
Contact Rating (Current) : 6 A
Switching Voltage : 250VAC, 250VDC - Max
Coil Current : 33 mA
Coil Type : Non Latching
Features : Lighted Indicator, Socket Included
Termination Style : Screw Terminal
Operating Temperature : -40°C ~ 60°C
Contact Material : Silver Nickel (AgNi)
Relay Type : General Purpose
