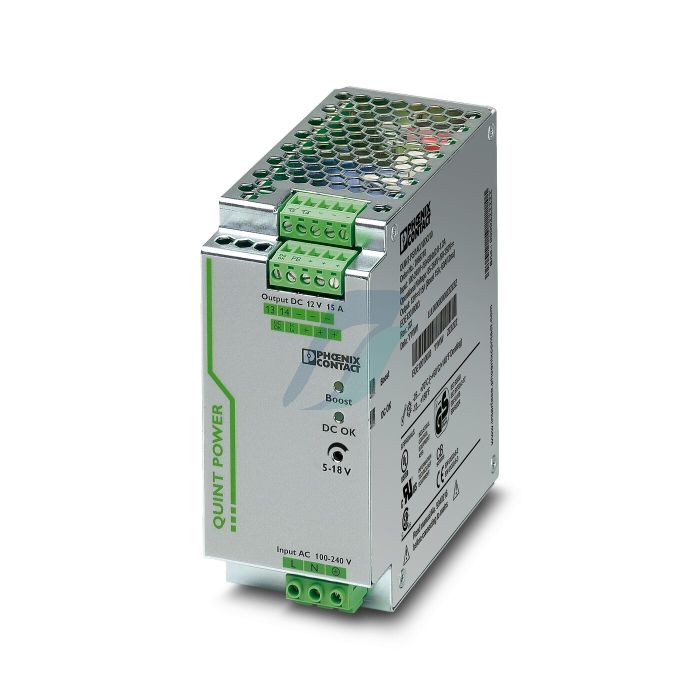

Phoenix Contact Power supply unit – QUINT-PS/1AC/12DC/15

₹28,767.43 For 1 Pc(s)

Notify Me

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 2866718
HSN Code 85044030
UOM Pc(s)
Manufacturer Phoenix Contact
Net weight in grams 1,510
ROHS Compliance No
Tax GST 18%
Country of Origin Thailand

Product Details

Primary-switched power supply unit, QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 15 A

Product Specification

Input Type : AC
Number of Outputs : 1
AC Voltage – Input : 100 ~ 240 VAC
Voltage - Output 1 : 12V
Current - Output (Max) : 15A
Power (Watts) : 180W
Voltage – Isolation : 4 kV
Applications : ITE (Commercial)
Efficiency : 89%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, IP20, Load Sharing, Universal Input
Approval Agency : CB, cULus, cURus
